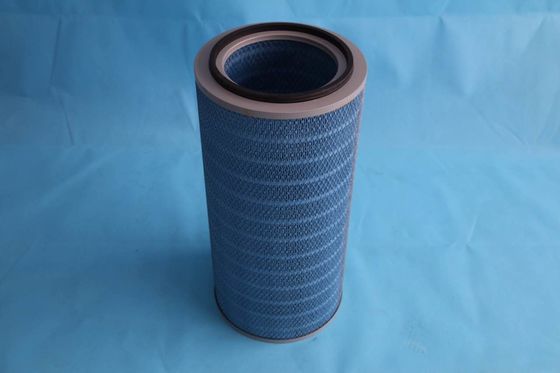

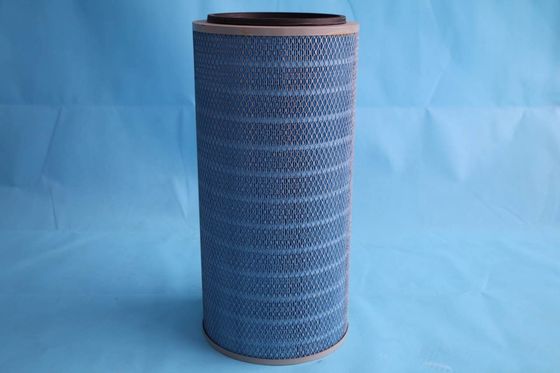

Flame Retardant Welding Dust Filter Cartridge Polyester Material Customized Size
  • Flame Retardant Welding Dust Filter Cartridge Polyester Material  Customized Size
  • Flame Retardant Welding Dust Filter Cartridge Polyester Material  Customized Size
  • Flame Retardant Welding Dust Filter Cartridge Polyester Material  Customized Size

Flame Retardant Welding Dust Filter Cartridge Polyester Material Customized Size

Place of Origin jiangsu
Brand Name Filter
Model Number Filter Cartridge
Product Details
Product Name:
Flame Retardant Welding Filter Cartridge
Type:
Pleated Filter Cartridge
Color:
White /black
Material:
Polyester
Dimension(L*W*H):
Customized
Highlight:

polyester filter cartridge

,

pleated filter cartridge

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 5000pcs filter cartridge per month
Product Description

Flame Retardant Welding Filter Cartridge



Description:



1) Imported PTFE coated polyester filter media, small pore size, high filtration precision.

2) Filter material surface do flame retardant processing.

3) Smooth filter media surface,not sticky.

4) Excellent chemical resistance.

5) Electro-galvanized / stainless steel cover, central skeleton.

6) Professional sealing obturator elastic neoprene.

7) Operating temperature ≤ 135 ° C.

8) Greatly increase the effective filtration area.

9) Ensure a low steady differential pressure, improve the circulation of air flow.

10) Small filter cartridge element, easy to install.



Conical : Length 660MM(26')*Large-end OD 445mm(17.5')*Small-end OD 324mm(12.75')



Cylindrical Washable Air Filter : Length 660MM(26')*Large-end OD 324mm(12.75')*Small-end OD         324mm(12.75')



Optional Filter Media:


1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.

End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.

Gasket: Professional sealing obturator elastic neoprene.

Features of Dust Cartridge:


1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.



Specification:



Material Polyester
Structure Cylindrical Filter Cartridge
Dimension (OD)324*(ID)213*(H)660mm Sizes are according to your requirements.
Efficiency 100%(Particles≥5μm)
End Caps Galvanized sheet

Inner Core

/ Outer Line

Galvanized diamond mesh
Gasket Foam Rubber
Construction Open/Closed with bolt hole
MOQ

NO MOQ . But advice full container to save cost.

20GP FCL:306 sets

40GP FCL:612 sets

40HQ FCL:714 sets

Loading Port Shanghai
Lead Time 10~15 days
Payment T/T ; West Union ; Paypal
Package Carton



Delivery:



Flame Retardant Welding Dust Filter Cartridge Polyester Material  Customized Size 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
