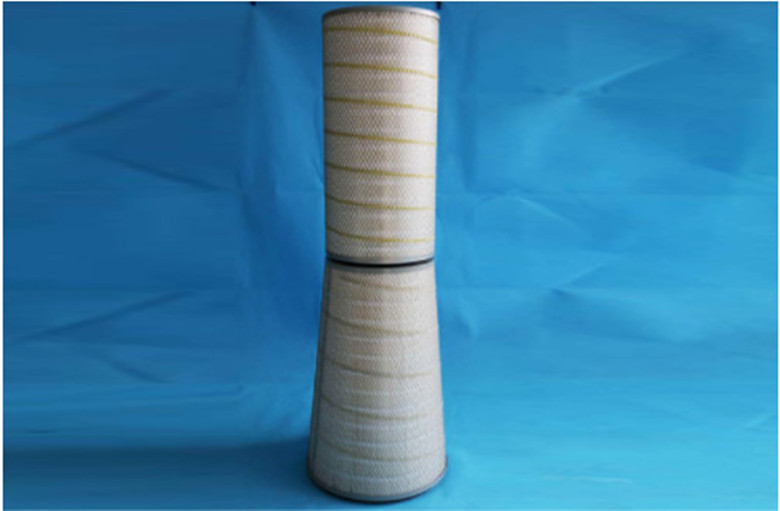

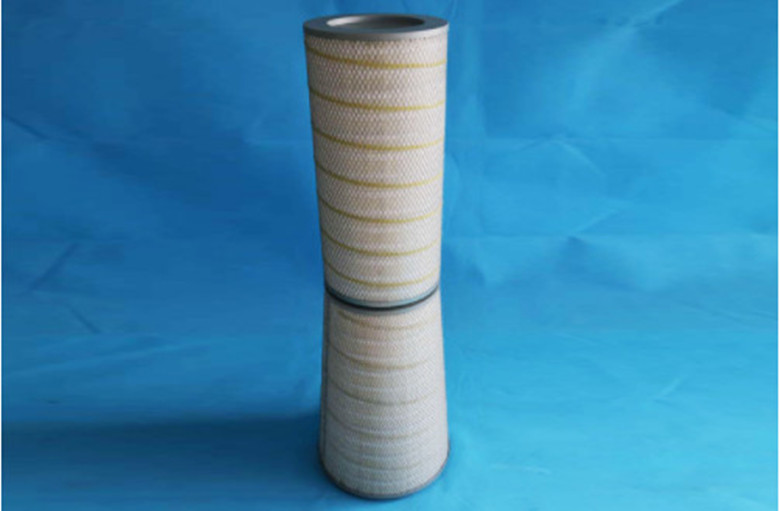

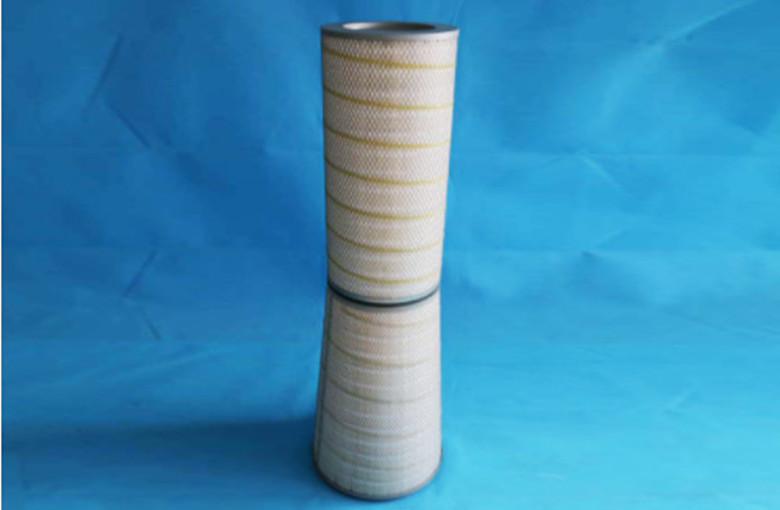

Gas Turbine Conical Dust Filter Cartridge Professional Sealing Obturator Elastic Neoprene
Conical Filter Cartridge
Description:
Anhui Filter Conical&Cylinder filter cartridge sets come in a variety of configurations:Conical/Cylindrical,Conical/Conical,and Cylindrical/Cylindrical are ideal for gas turbine air inlet applications.
Features:
1) Imported special air filter, large filter area.
2) Electro-galvanized end caps, not rust.
3) Electro-galvanized diamond mesh central skeleton, high opening rate.
4) Professional sealing obturator elastic neoprene.
5) Operating temperature ≤65°C.
6) Wide pleat height.
7) Ultra-high efficiency:99.99%.
8) Large amount of ventilation.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Specification:
| Material |
80% cellulose fibrel+20% Polyester fibre |
| Structure |
Cylindrical & Conical Filter Cartridge |
| Dimension |
Cylindrical Filter: (OD)324*(ID)213*(H)660mm
Conical Filter: (OD)445/324*(ID)330*213*(H)660mm
Sizes are according to your requirements.
|
| Efficiency |
F7 |
| End Caps |
Galvanized sheet |
|
Inner Core
/ Outer Line
|
Galvanized diamond mesh |
| Gasket |
Foam Rubber |
| Construction |
Cylindrical Filter: Open/Closed with bolt hole
Conical Filter: Open/Open
|
| MOQ |
NO MOQ . But advice full container to save cost.
20GP FCL: 114 sets
40GP FCL: 230 sets
40HQ FCL: 275 sets
|
| Loading Port |
Shanghai |
| Lead Time |
10~15 days |
| Payment |
T/T ; West Union ; Paypal |
| Package |
Carton |
Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
