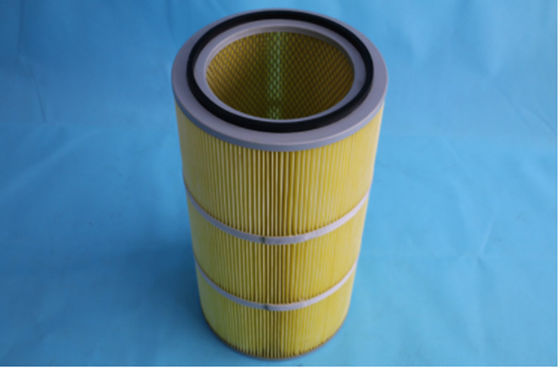

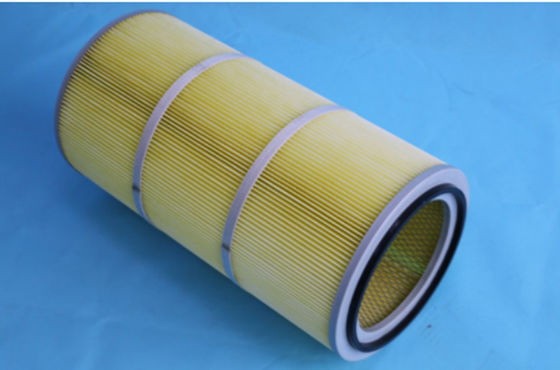

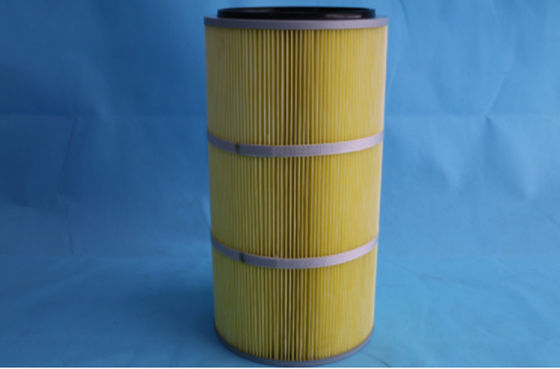

Polyester oil&water repellent filter cartridge
Description:
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
3)Surface is oil&water repellent treatment.
4) Smooth filter media surface,not sticky.
5) Excellent chemical resistance.
6) Good filter material stiffness,can be repeated washed.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Specification:
Material | Polyester oil&water repellent |
Structure | Cylindrical Filter Cartridge |
Dimension | (OD)320*(ID)210*(H)600mm Sizes are according to your requirements. |
Efficiency | 100%(Particles≥5μm) |
End Caps | Galvanized sheet |
Inner Core / Outer Line |
Galvanized diamond mesh |
Gasket | Foam Rubber |
Construction | Open/Closed with bolt hole |
MOQ |
NO MOQ . But advice full container to save cost. 20GP FCL:382 sets 40GP FCL:774 sets 40HQ FCL:893 sets |
Loading Port | Shanghai |
Lead Time | 10~15 days |
Payment | T/T ; West Union ; Paypal |
Package | Carton |
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
