Product Details:
Payment & Shipping Terms:
|
| Product Name: | PPS Filter Bag | Weight: | 500GSM~550GSM |
|---|---|---|---|
| Size: | Customized | Usage: | Dust Filter,Air Filter,dust Collector |
| Type: | Pocket Filter,Dust Filter Bag,Non-woven Filter | Material Of Bag: | Non-woven,Polyester,PPS,Aramid,Nomex,PTFE,PPS,P84 |
| Application: | Industry Dust Collector,cement Plant,Dust Collector Bag House,asphalt Mix,Industrial Dust Removal | Applicable Industries: | Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory,Machinery Repair Shops |
| Product Name: | NomexFilter Bag,filter Bag,Nomex,jet Dust Filter,Polyester Anti-Static Needle Felt Filter Bag | Thickness: | 1.8-2.0mm |
| Material: | PPS | Temperature: | 150-190℃ |
| Feature: | Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality | Name: | PPS,NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag |
| Oem: | Welcomed | Keyword: | PPS Oil&water Repellent,aramid Filter Bag,nomex Filter Bag For Steel Plant,PPS Filter Bag,filter Bag |
| Packaging: | Carton,woven Bag Or According To Your Requirement. | Top: | SS304 Sanpband |
| High Light: | 450gsm PPS Filter Cloth,550gsm PPS Filter Cloth,Customized PPS Filter Cloth |
||
Description:
PPS filter bags are used for higher temperature applications with a maximum continuous operating temperature of 160ºC.
PPS filter bags raw material is made of Japan Toray PPS high quality fiber and produced by Germany equipment to loosening, needle punching.
Technical Specification:
| Fibre | PPS |
| Scrim | PPS or PTFE |
| Weight(G/M2) | 500~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering,oil&water repellent or with PTFE membrane treatment. |
| Air permeability (L/dm2/min): | 130 |
| Tensile strength (N/5× 20cm) | Warp:>1200 Weft:>1300 |
| Tensile elongation (%): | Warp:<30 Weft:<30 |
| Temperature (ºC): | Continue: 150 Instant: 192 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Excellent |
Our company can provide different kinds of PPS filter bags according to the customer's demands as follow:
1. PPS filter bags
2. PPS water and oil repellent filter bags
3. PPS+PTFE scrim filter bags
4. PPS+PTFE blending filter bags
5. 30%PPS,70%PTFE filter bags
6. 50%PPS,50%PTFE filter bags
7. 70%PPS,30%PTFE filter bags
Applications:
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
Features:
1. High efficient filtration level.
2. Depth type filtration.
3. Wide range of chemically compatible media.
4. High temperature resistance.
5. High flow efficiency.
6. High air to cloth ratio.
7. Various coatings are available.
Making method:

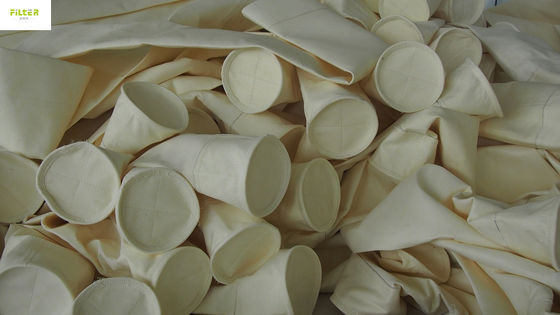

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
