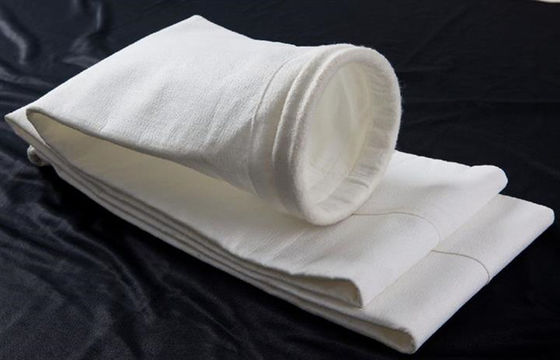

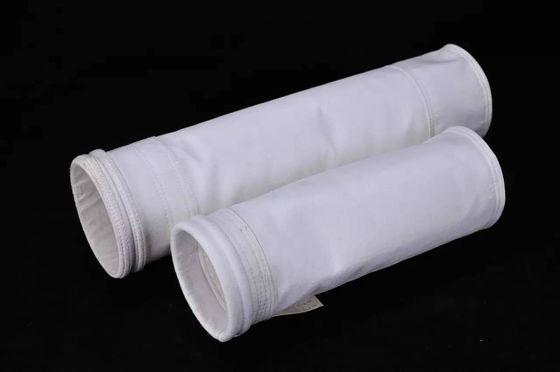

Polyester Filter Bag for Cement Plant
Filter Bag Function:
When the dust gas through the filter bag. The dust will be block on the filter bag surface. The clean gas will pass away. So we can say that,The filter bag is the core of the dust filter. Or, you can consider it as the lung in our body.
Filter Bag Specification:
The diameter of the filter bag should around 115 mm diameter to 200mm diameter. The filter bag length should 2000 - 9000mm, the specifications of the commonly used filter bag is 125 - 170 mm diameter, 2000 ~ 6000mm length.The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us with detailed information. After then, we should begin to processing. We will make the filter fabric first.
Technical Data:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1100 Weft:>1350 |
| Tensile elongation (%): | Warp:<25 Weft:<45 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Anti-acid | Excellent |
| Anti-alkali | Fair |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Fair |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc. |
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
11.Steel Plant.
Packaging & Delivery:
Our Services:
1. Your inquiry will be replied within 24hours.
2. Specialized team makes us strong support to solve your problem from purchases to application.
3. Competitive prices based on same quality as we are factory supplier.
4. Guarantee samples quality same as the bulk production.
5. Positive attitude to custom design products.
