Felt Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Felt filter bags |

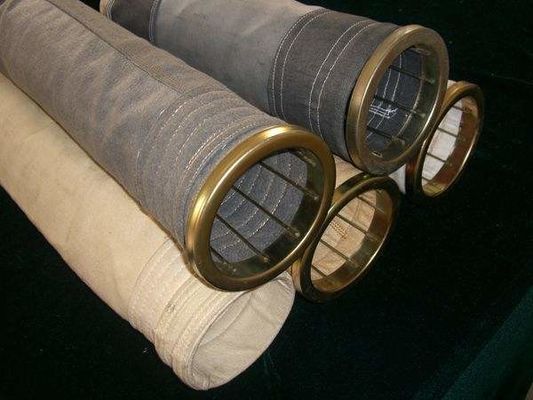

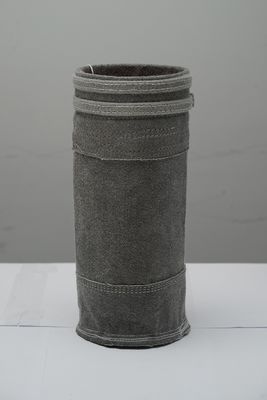

Blending Anti-static Polyester Non-woven Dust Filter Bag
Description:
Material: Polyester anti-static repellent Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138,Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, mixing lead static fibre or stripe lead static fibre Treatment. |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1100 |
| Tensile elongation (%): | Warp:<35 Weft:<55 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Surface Resistance(Ω.cm) | 103~108 |
| Anti-acid | Middle |
| Anti-alkali | Middle |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Middle |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry,power plant etc. |
Filter Cloth Material Type:
POLYESTER
POLYPROPYLENE
HOMOPOLYMER ACRYLIC
NOMEX (ARAMID)
RYTON (PPS)
P-84 (POLYIMIDE)
FIBREGLASS
PTFE
Features:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
11.Steel Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
Contact Us at Any Time
