|Product Name:||Filter Bag Cage||Applicable Industrie:||Steel Plant,cement Plant,power Plant Etc.|
|Feature:||Smooth, Slight, Straight||Main Function:||Filter Bag Skeleton|
bag supporting cages,
Spay Silicon dust collector cages,

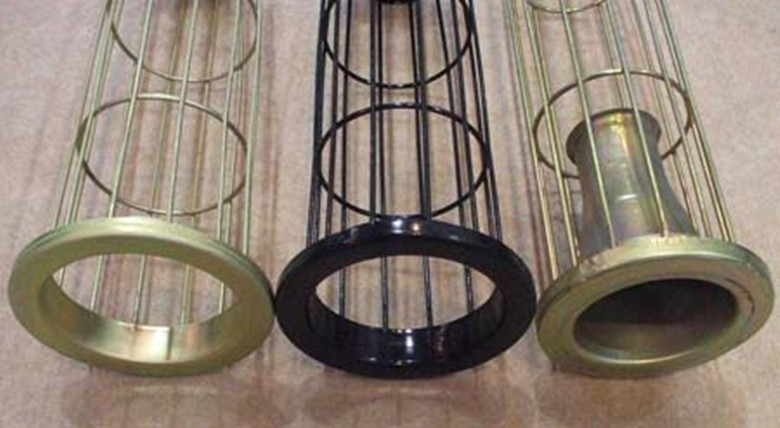

Zinc Plated Filter Bag Cage
Spray Silicon Filter Bag Cage

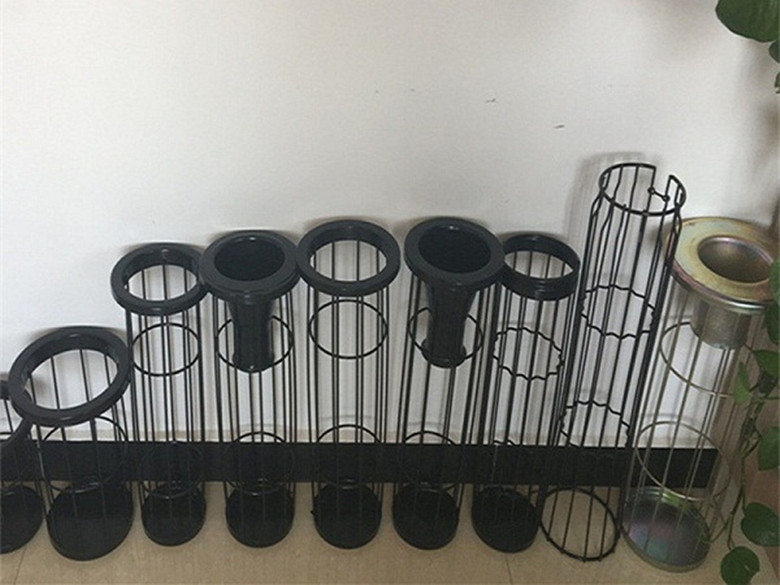

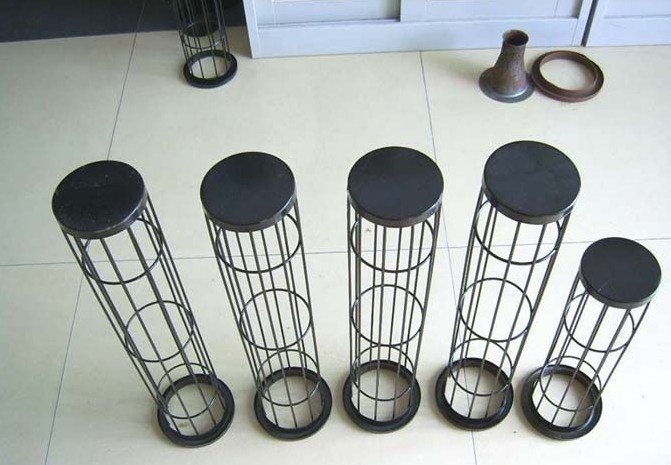

We surpply full range of filter bag cages; each cage can fit to the requirements of being light, handy, smooth and straight. Cage resembles the rib of bag. It should be light, handy, easy to install, maintain, and it is smooth and straight, to prevent the bag from damage.
1.material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
Provide us the data of filter bag cage:
The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. So the detailed and accurate data can ensure the normal use of the product to the maximum extent. It's great that you can provide design drawings, or if you provide data according to the following information.
1. Filter cage material and size
2. Quantity of vertical wires
3. Space of Horizontal wires
4. Wire and Ring diameter
5. Cell plate sizes of dust collector or baghouse

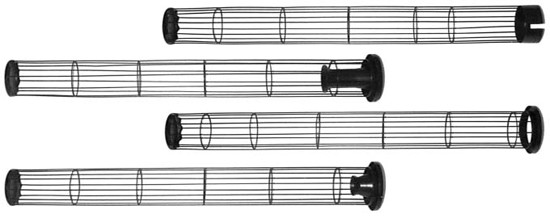

Specifications For Filter Bag Cage with venturi for dust collector
|Types||Round Style/Flat Style/Envelope Style/ Special Style|
|Number Of Wires||8/10/12/16/20/24 vertical wires|
|Ring Space||Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)|
|Cage Diameter||Cage diameters range from 4 inch to 8 inch (100mm to 200mm)|
|Wire thickness||Wire thickness ranges are 2mm to 5mm|
|Material||Carbon Stee, Galvanized Steel, Stainless Steel|
|Finishment||Epoxy, PVC vinyl coating|
|Packaging||Cages are packed in custom designed cartons|
|Usage||Dust from factory of mine, wood,Cement, chemical, medicine,
dying,Paint, plastic,food & other industry,such as coal fired
power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
3.3-5 times longer life than other bag Cage with steel
Joint types of filter bag:
Different joint different price, please contact us to know more detail about joint.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
