1) Imported nano fiber and wood fiber composite.
2) can highly remove the anti purge process of small particles
3) The filtration effciency level F7-F9
4) The filter material strength is high,the stiffness is good,has the outstanding moisture resistance.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature135C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.

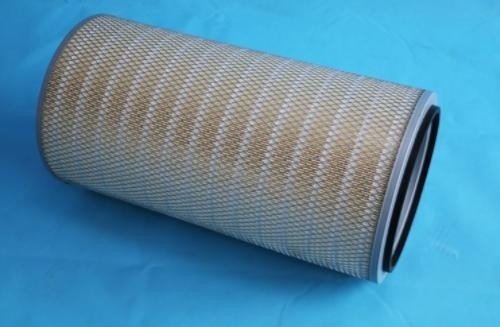

||Cylindrical Filter Cartridge
||(OD)324*(ID)213*(H)660mm Sizes are according to your requirements.
/ Outer Line
|Galvanized diamond mesh
||Open/Closed with bolt hole
||NO MOQ . But advice full container to save cost.
20GP FCL:306 sets
40GP FCL:612 sets
40HQ FCL:714 sets
||T/T ; West Union ; Paypal
