Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant
  • Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant

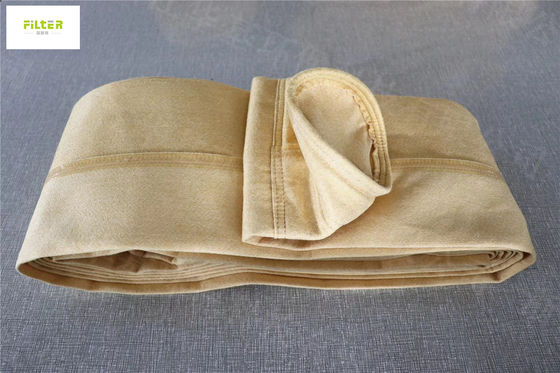

Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant

Place of Origin china
Brand Name filter
Model Number FLT-FB-268
Product Details
Usage:
Dust Filter,Liquid Filter,Air Filter,Industry Dust Collector
Type:
Pocket Filter,Mesh Filter Bag,circular Size Filter Bag,polyester Dust Filter Bag,Fabric Dust Collector
Material Of Bag:
Non-woven,Polyester,PPS,Fiberglass,aramid,P84,PTFE
Material:
Polyester,polypropylene,PPS,Nomex,PTFE,Fibreglass
Size:
Custiomized
Application:
Industry Dust Collector,Dust Filter,Bag House Filter,Liquid-solid Separation,Pocket-type Dust Collector
Working Temperature:
130 - 280 Degree
Item:
Filter Bags For Baghouse,PE Needle Felt Filter Dust Collector Filter Bag,Anti-abrasion Aramid Material Dust Collector Filter Bag
Thickness:
1.8mm~2.5mm
Feature:
High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality
Name:
Baghouse Dust Collectors Quarry And Filter Bag,dust Collecting Bag
High Light:

PTFE Dust Collector Filter Bag

,

1.8mm Thickness PTFE Bag Filter

,

Alkaline Resistant PTFE Bag Filter

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

Polyester/Acrylic/Aramid/PPS/PTFE Bag Filter Dust Collector Filter Bag:



Description:



We select Dupont Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries .


The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas.


The normal specification of Nomex Filtration Felt :450 gsm , 500 gsm , 550 gsm , 600 gsm.


Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment .


Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector.


Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant 0


Technical Specification:

Fiber Composition

Polyester
Polyester (PET) with PTFE membrane

PTFE

P84

PPS

Nomex
Weight (g/m2)
500
500
750-800
500
500-550
450-600
Thickness (mm)
1.7-2.0
1.7-2.0
1.2-1.6
2.1
1.8-2.0
1.9-2.4
Running Temperature (°C)
130
130
240
180
160
200
Peak Temperature (°C)
150
150
260
260
190
240
Air Permeability

(M3/M2.S. 200Pa)
8-12
8-12
5-8
14
15
8-12
Mechanical Finish
Singeing, calendaring, heat-set
Singeing,calendaring
Heat-set and Singed one side
Singeing
Singring
coating
Heat-set
Singeing
Chemical Finish
membrane
PTFE/PTFE
coated
anti-static
Water and oil repellent

PTFE impregnated peritoneal


PTFE coating, membrane
Warp Of Stretch Strength
800
1000
600
900
900
900
Welf Of Stretch Strength
1200
1300
800
1200
1200
1200
Resistance to Acid
Medial
Fair
Excellent
Excellen
Excellent
Fair
Resistance to Oxidation
Excellent
Good
Excellent
Excellent
Poor
Fair
Resistance to Alkali
Medial
Poor
Excellent
Excellent
Excellent
Good
Resistance to Hydrolysis
Medial
Poor
Excellent
Excellent
Excellent
Fair
Application
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant
3) Asphalt concrete mixture, cements, chemical,ceramics, building materials
4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
Size
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
Filter Bag Top Construction
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded
Bottom Construction
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction




Producing Process:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1



Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2



Applications:



Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant 3


More Production:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 4



Packaging & Delivery:



Polyester Acrylic PPS PTFE Bag Filter For Dust Collector Alkaline Resistant 5


Foreign Trade Team:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6



Exhibization:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7



Customer Visit:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days



FAQ:



Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.

Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, FCA, EXW

Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?
A: We could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them.

Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
