Manufacturer of high temperature filter bags for industrial dust collector

50pcs
MOQ
Negotiable
Price

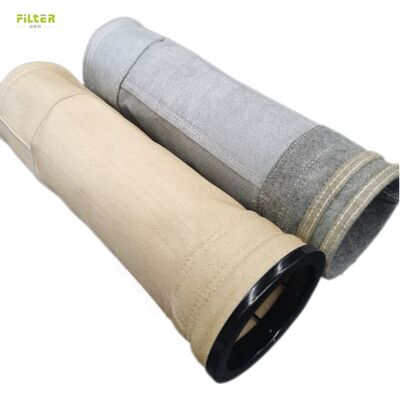

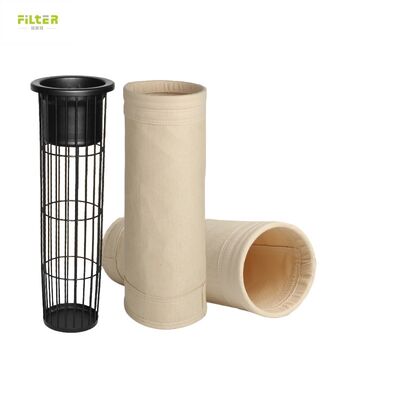

Manufacturer of high temperature filter bags for industrial dust collector
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PPS Filter Bag
Applicable Industrie: Food And Beverage Industry,pharmaceutical Industry,non-ferrous Metallurgy,chemcial Plant,building Section And Mining Industry Etc.
Usage: Dust Filter
Weight: 400GSM~800GSM
Size: Customized
Type: Pocket Filter,Mesh Filter Bag,circular Size Filter Bag,polyester Dust Filter Bag,Fabric Dust Collector
Material Of Bag: Non-woven,Polyester
Material: Arcylic,Polyester,P84,PPS,Aramid,PTFE Etc.
Application: Industry Dust Collector,Dust Filter,Bag House Filter,Liquid-solid Separation,Pocket-type Dust Collector
Shape: Round
Color: White
Working Temperature: 130-150℃
Item: Filter Bags For Baghouse,PE Needle Felt Filter Dust Collector Filter Bag,Anti-abrasion Aramid Material Dust Collector Filter Bag
Thickness: 1.8mm
Feature: High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality
Highlight:

high temperature PPS filter bags

,

industrial dust collector filter bags

,

PPS filter bags with warranty

Basic Infomation
Place of Origin: Anhui
Brand Name: Filter
Certification: ISO9001
Model Number: filter bag
Payment & Shipping Terms
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: Supply 10000pcs filter bags per month
Product Description

Manufacturer of high temperature filter bags for industrial dust collector:



Description:


Material:PPS Needle Felt
Weight: 500GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.


Technical Specification:


Fibre PPS
Scrim PPS
Weight(G/M2) 500~550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering,PPS dipping treatment.
Air permeability (L/dm2/min): 130
Tensile strength (N/5× 20cm) Warp:>800 Weft:>1000
Tensile elongation (%): Warp:<21 Weft:<34
Temperature (ºC): Continue: 150 Instant: 192
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent
Hydrolytic stability Excellent

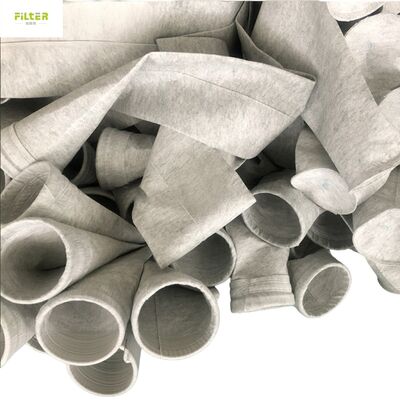

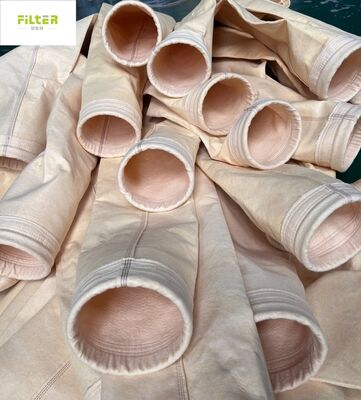

Manufacturer of high temperature filter bags for industrial dust collector

Manufacturer of high temperature filter bags for industrial dust collector
Manufacturer of high temperature filter bags for industrial dust collector
Applications:

Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.

Features:

1.High efficient filtration level.

2.Depth type filtration.

3.Wide range of chemically compatible media.

4.High temperature resistance.

5.High flow efficiency.

6.High air to cloth ratio.

7.Various coatings are available.

Making method:

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.

Packaging & Delivery:

Manufacturer of high temperature filter bags for industrial dust collector

Competitive Advantages:

1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery

Shipping Details:


SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
