|Product Name:||Toray Polyester Filter Cartridge||Type:||Pleated Filter Cartridge|
polyester filter cartridge,
pleated filter cartridge

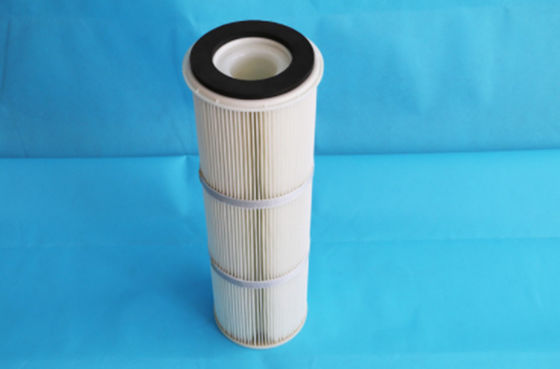

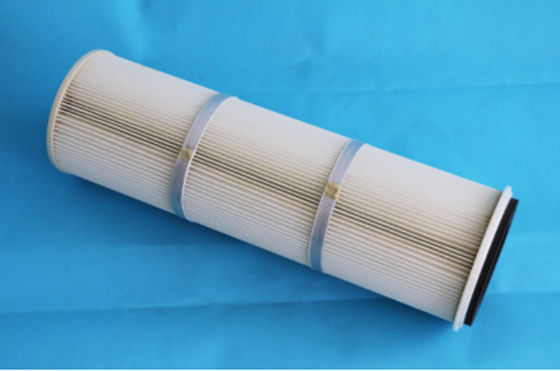

Toray Polyester Filter Cartridge
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Good filter material stiffness,can be repeated washed.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.

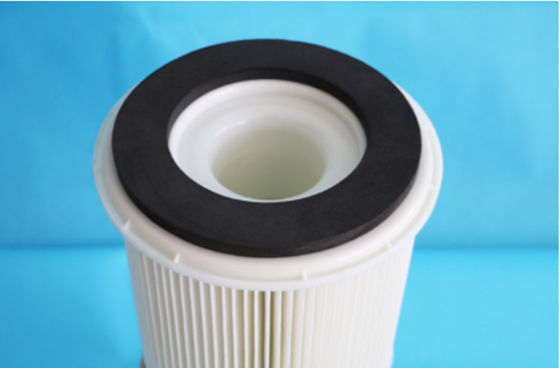

Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature ≤ 135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
|Structure||Cylindrical Filter Cartridge|
|Dimension||(OD)324*(ID)213*(H)660mm Sizes are according to your requirements.|
|End Caps||Galvanized sheet|
/ Outer Line
|Galvanized diamond mesh|
|Construction||Open/Closed with bolt hole|
NO MOQ . But advice full container to save cost.
20GP FCL:306 sets
40GP FCL:612 sets
40HQ FCL:714 sets
|Lead Time||10~15 days|
|Payment||T/T ; West Union ; Paypal|
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
