Product Details:
Payment & Shipping Terms:
|
| Usage: | Dust Filter,Air Filter | Type: | Industrial Dust Collector,Non-woven Filter |
|---|---|---|---|
| Material Of Bag: | PPS,Non-woven | Application: | Industry Dust Collector,Power Generation,Dust Collector Bag House |
| Size: | Custiomized | Material: | PPS |
| Name: | Industrial Filter Bags,Industrial Dust Collector | Weight: | 400-600GSM(±5%) |
| Feature: | High Efficiency,High Filtration Accuracy,Alkaline Resistant,Dust Collection | ||
| High Light: | High temperature dust collection filter bags,Φ 120 filter bags for dust collector,Anti Alkali PPS Filter Bags |
||
High temperature Star PPS Dust Collector Filter Bag for Power Plant
Description:
Material:PPS Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Specification:
| Material | PPS fibre | ||
| Scrim | PTFE | ||
| Weight(g/m2) | 550 | ||
| Thickness(mm) | 1.8 | ||
| Air Permeability(m3/m2/min) | 9 | ||
| Tensile Strength(N/5X20cm) | wrap | >1200 | |
| weft | >1400 | ||
| Tensile Elongation(%) | wrap | <30 | |
| weft | <30 | ||
| Breaking Strength(Mpa/min) | 2.45 | ||
| Continuous Operating Temperature(℃) | <190 | ||
| Short Time Operating Temperature(℃) | 210 | ||
| Acid Resistance | excellent | ||
| Alkali Resistance | excellent | ||
| Wear Resistance | excellent | ||
| Hydrolytic Stability | excellent | ||
| Water Level | Level 5 AATTCC100 | ||
| Surface Treatment | Singed,Calandered,with PTFE membrane. | ||
Applications:
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
Features:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Making method:

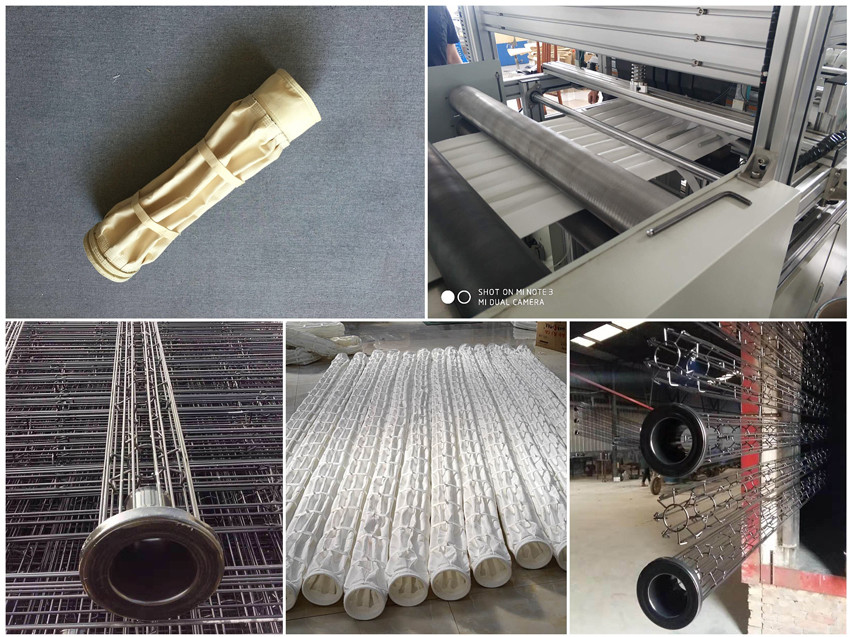

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
