Payment & Shipping Terms:
|Applicable Industrie:||Cement Plant,Power Plant,Steel Plant||Feature:||Smooth, Slight, Straight|
|Main Function:||Filter Bag Skeleton||Shape:||Custom Shape|
|Size:||Customized||Material:||Stainless Steel,Carbon Steel,Galvanized Metal,316L|
|Product Name:||Dust Filter Cage,steel Filter Bag Cage,PP Nonwoven Filter Bag Cage For HVAC,Industrial Dust Collector Bag Filter Cages With Venturi Tube,Good Quality Filter Bag Cage||Application:||Baghouse Filter,Dust Filter Bag Support,Dust Collect,dust Filtration|
|Type:||Round,Star,pulse Jet,reverse Air,Envelop||Usage:||Dust Collect,Dust Filter,Bag Filter,Filter Parts|
SS316 Filter Bag Cage,
Baghouse Dust Collector Filter Cage,
Carbon Steel Dust Collector Baghouse Cages

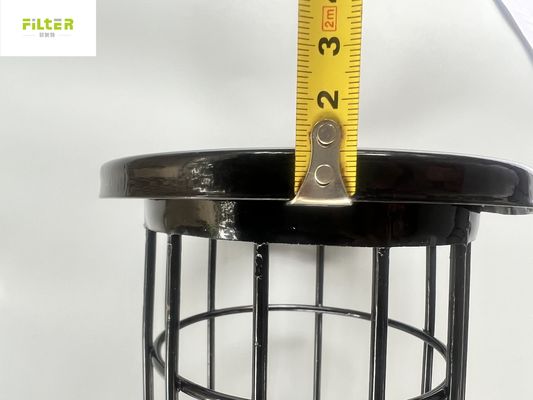

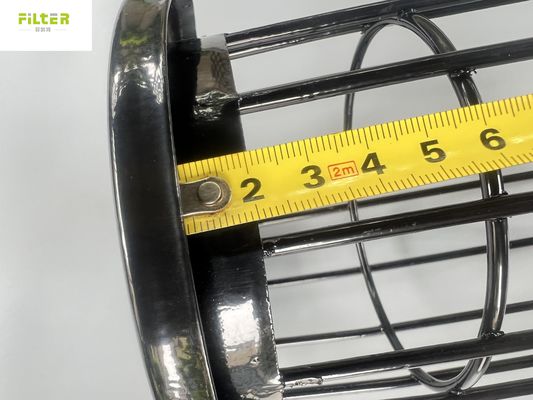

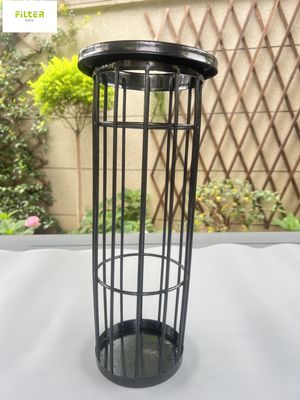

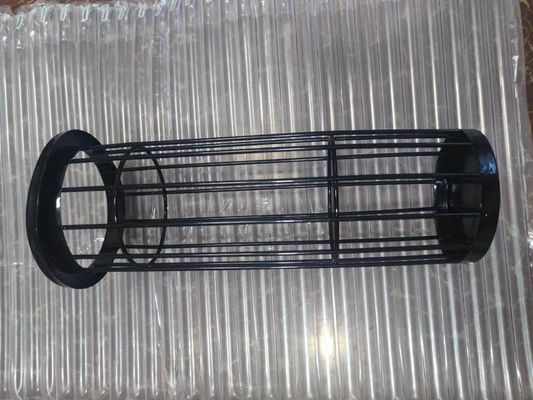

Dust Collector Filter Bag Cage with Carbon Steel/SS304/316/316L Material:
We surpply full range of filter bag cages; each cage can fit to the requirements of being light, handy, smooth and straight. Cage resembles the rib of bag. It should be light, handy, easy to install, maintain, and it is smooth and straight, to prevent the bag from damage.
1.material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
Provide us the data of filter bag cage:
The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. So the detailed and accurate data can ensure the normal use of the product to the maximum extent. It's great that you can provide design drawings, or if you provide data according to the following information.
1. Filter cage material and size
2. Quantity of vertical wires
3. Space of Horizontal wires
4. Wire and Ring diameter
5. Cell plate sizes of dust collector or baghouse
Joint types of filter bag:
Different joint different price, please contact us to know more detail about joint.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
Contact Person: Nancy
