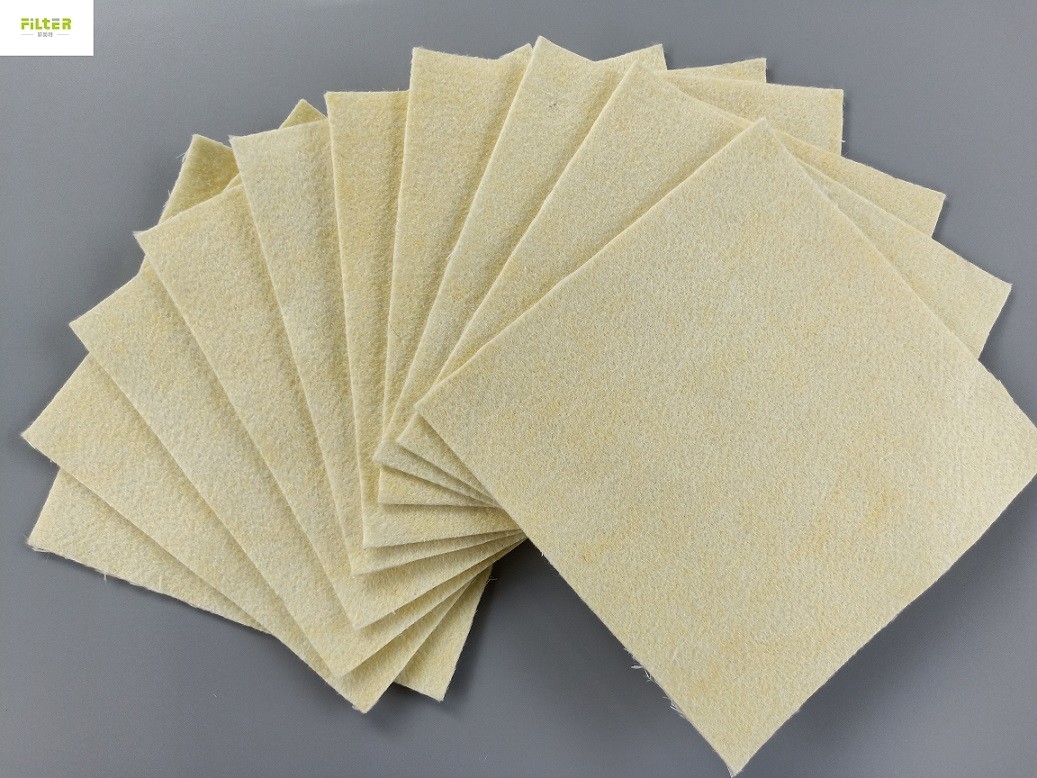

PPS Nomex PTFE Fiberglass Air Filter Cloth For Dust Collector System

Name: PPS Nomex PTFE Fiberglass Air Filter Cloth For Dust Collector System
Brand: Filter
SKU: FLT-FB-481
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (144 reviews)

Large Image : PPS Nomex PTFE Fiberglass Air Filter Cloth For Dust Collector System

Product Details:

Place of Origin:	Anhui
Brand Name:	Filter
Model Number:	FLT-FB-481

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	Supply 10000pcs filter bags per month

Contact Now

Detailed Product Description

Product Name:	Aramid,,Nomex,PPS,Polyester,PTFE,P84,Fiberglass	Applicable Industrie:	Industrial Dust Collector,water Treatment
Sewing:	Double Stitching Or Hot Melt	Certificate:	ISO9001:2008
Weight:	450GSM~860GSM	Size:	Round/Flat/Custiomized
Material Of Bag:	Polyester,pps,PTFE,Aramid,P84,Fiberglass	Type:	Pocket Filter
Top:	Stainless Steel Snap Band	Bottom:	Reforcement 75~100mm
Finishing Treatment:	Heat Setting	Temperature:	90deg.c~240deg.c
Shape:	Round Or Flat	Package:	OEM Package,polybags/cartons/customized
Micron Rating:	99.99%	Name:	Aramid/NOMEX Dust Filter Bag
Oem:	Custom Size Acceptable	Keyword:	Aramid Filter Bag,nomex Filter Bag For Steel Plant
High Light:	Fiberglass Air Filter Cloth , Dust Collector PTFE Filter Cloth , 450GSM Air Filter Cloth

PPS,Nomex,PTFE,Polyester,P84,Aramid,PP,Fiberglass air filter cloth for dust collector system:

Description:

We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications.

Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.

Specification:

The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.

fiberglass dust filter bag

The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference.

Technical Data:

Fiber Composition	Polyester	Polyester (PET) with PTFE membrane	PTFE	P84	PPS	Nomex
Weight (g/m2)	500	500	750-800	500	500-550	450-600
Thickness (mm)	1.7-2.0	1.7-2.0	1.2-1.6	2.1	1.8-2.0	1.9-2.4
Running Temperature (°C)	130	130	240	180	160	200
Peak Temperature (°C)	150	150	260	260	190	240
Air Permeability (M3/M2.S. 200Pa)	8-12	8-12	5-8	14	15	8-12
Mechanical Finish	Singeing, calendaring, heat-set	Singeing,calendaring	Heat-set and Singed one side	Singeing	Singring coating Heat-set	Singeing
Chemical Finish	membrane	PTFE coated anti-static Water and oil repellent	PTFE impregnated peritoneal			PTFE coating, membrane
Warp Of Stretch Strength	800	1000	600	900	900	900
Welf Of Stretch Strength	1200	1300	800	1200	1200	1200
Resistance to Acid	Medial	Fair	Excellent	Excellen	Excellent	Fair
Resistance to Oxidation	Excellent	Good	Excellent	Excellent	Poor	Fair
Resistance to Alkali	Medial	Poor	Excellent	Excellent	Excellent	Good
Resistance to Hydrolysis	Medial	Poor	Excellent	Excellent	Excellent	Fair
Application	1) The fume and smoke treatment and particle removing system in metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power plant 3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
Size	Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
Filter Bag Top Construction	1) Side Load: raw edge top (3” longer than split collar cage length) 2) Top Load: snap band/ring ; double beaded
Bottom Construction	1) Single-ply felted disc bottom 2) 3” bottom; double-ply wearguard 3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction

Production Feature:

All filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature.

Advantages:

1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .

Application:

Our products are widely used in steel, non-ferrous metal smelting, cement, power, waste incineration, chemical, medicine, asphalt mixing, food, ceramics, glass, lime, gypsum, clay manufacturing and other different fields.

According to the production and environmental protection needs of different processes, from raw material storage and transportation, raw material drying, mixing, roasting, sintering, smelting, desulfurization and denitration, casting, polishing, grinding, powder selection, packaging and other processes, our team developed a full range of "high efficiency and low resistance" filtration products. And has great using effect in real application.

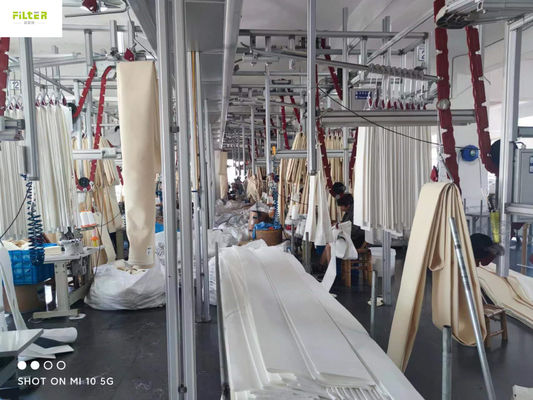

Producing Process:

Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2

Applications:

PPS Nomex PTFE Fiberglass Air Filter Cloth For Dust Collector System 3

More Production:

Packaging & Delivery:

PPS Nomex PTFE Fiberglass Air Filter Cloth For Dust Collector System 5

Foreign Trade Team:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6

Exhibization:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7

Customer Visit:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9

Shipping Details:

SHIPPING (Normally arrive port time in working days)
Destination	Express/Courier	SHIP BY SEA	SHIP BY AIR	SHIP BY EMS
Destination	DHL/FEDEX/UPS/TNT	SHIP BY SEA	SHIP BY AIR	SHIP BY EMS
North America	3~7 days	15~24 days	5~7 days	10~12 days
South America	3~7 days	15~25 days	5~7 days	10~12 days
European Countries	3~7 days	20~30 days	5~7 days	10~12 days
Africa Countries	3~7 days	40~50 days	5~7 days	10~12 days
The Middle East	3~7 days	15~25 days	5~7 days	10~12 days
Australia	3~7 days	10~15 days	5~7 days	10~12 days
