Aramid/Nomex PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass

Aramid/Nomex  PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass
Aramid/Nomex  PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass

Large Image :  Aramid/Nomex PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass

Product Details:

Place of Origin: Anhui
Brand Name: Filter
Model Number: FLT-FB-422

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: Supply 10000pcs filter bags per month
Detailed Product Description
Product Name: Polyester,PPS,PTFE,Nomex,P84,Fiberglass Applicable Industrie: Industrial Dust Collector,water Treatment
Sewing: Double Stitching Or Hot Melt Certificate: ISO9001:2008
Weight: 450GSM~550GSM Size: Round/Flat/Custiomized
Material Of Bag: Polyester,pps,PTFE,Aramid,P84,Fiberglass Type: Pocket Filter
Top: Stainless Steel Snap Band Bottom: Reforcement 75~100mm
Finishing Treatment: Heat Setting Temperature: 190deg.c~240deg.c
Shape: Round Or Flat Package: OEM Package,polybags/cartons/customized
Micron Rating: 99.99% Name: Aramid/NOMEX Dust Filter Bag
Oem: Custom Size Acceptable Keyword: Aramid Filter Bag,nomex Filter Bag For Steel Plant
High Light:

P84 Dust Collector Filter Bags

,

PTFE Dust Collector Filter Bags

,

PPS Dust Collector Filter Bags

Polyester ,Fiberglass ,Aramid/Nomex ,PPS ,P84 ,PTFE Dust Collector Filter Bags​:



Description:



We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications.



Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.


Aramid/Nomex  PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass 0


Specification:



The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.

fiberglass dust filter bag

The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference.



Technical Data:



Fiber Composition

Polyester
Polyester (PET) with PTFE membrane

PTFE

P84

PPS

Nomex
Weight (g/m2)
500
500
750-800
500
500-550
450-600
Thickness (mm)
1.7-2.0
1.7-2.0
1.2-1.6
2.1
1.8-2.0
1.9-2.4
Running Temperature (°C)
130
130
240
180
160
200
Peak Temperature (°C)
150
150
260
260
190
240
Air Permeability

(M3/M2.S. 200Pa)
8-12
8-12
5-8
14
15
8-12
Mechanical Finish
Singeing, calendaring, heat-set
Singeing,calendaring
Heat-set and Singed one side
Singeing
Singring
coating
Heat-set
Singeing
Chemical Finish
membrane
PTFE/Teflon
coated
anti-static
Water and oil repellent

PTFE impregnated peritoneal


PTFE coating, membrane
Warp Of Stretch Strength
800
1000
600
900
900
900
Welf Of Stretch Strength
1200
1300
800
1200
1200
1200
Resistance to Acid
Medial
Fair
Excellent
Excellen
Excellent
Fair
Resistance to Oxidation
Excellent
Good
Excellent
Excellent
Poor
Fair
Resistance to Alkali
Medial
Poor
Excellent
Excellent
Excellent
Good
Resistance to Hydrolysis
Medial
Poor
Excellent
Excellent
Excellent
Fair
Application
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant
3) Asphalt concrete mixture, cements, chemical,ceramics, building materials
4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
Size
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
Filter Bag Top Construction
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded
Bottom Construction
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction



Production Feature:



All filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature.



Advantages:



1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .



Application:



Our products are widely used in steel, non-ferrous metal smelting, cement, power, waste incineration, chemical, medicine, asphalt mixing, food, ceramics, glass, lime, gypsum, clay manufacturing and other different fields.


According to the production and environmental protection needs of different processes, from raw material storage and transportation, raw material drying, mixing, roasting, sintering, smelting, desulfurization and denitration, casting, polishing, grinding, powder selection, packaging and other processes, our team developed a full range of "high efficiency and low resistance" filtration products. And has great using effect in real application.

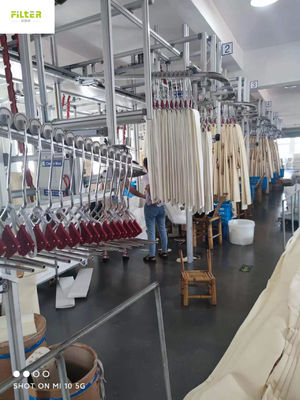

Producing Process:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1



Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2

Applications:



Aramid/Nomex  PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass 3


More Production:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 4



Packaging & Delivery:



Aramid/Nomex  PPS P84 PTFE Dust Collector Filter Bags Polyester Fiberglass 5


Foreign Trade Team:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6

Exhibization:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7



Customer Visit:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
