Industrial Filter Cloth
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter bag |
Produce normal temperature 300~550gsm polyester needle felt filter cloth:
Description:
Technical Parameters:
|
Fiber Composition
|
Polyester
|
Polyester (PET) with PTFE membrane
|
PTFE
|
|
PPS
|
Nomex
|
|
Weight (g/m2)
|
500
|
500
|
750-800
|
500
|
500-550
|
450-600
|
|
Thickness (mm)
|
1.7-2.0
|
1.7-2.0
|
1.2-1.6
|
2.1
|
1.8-2.0
|
1.9-2.4
|
|
Running Temperature (°C)
|
130
|
130
|
240
|
180
|
160
|
200
|
|
Peak Temperature (°C)
|
150
|
150
|
260
|
260
|
190
|
240
|
|
Air Permeability
(M3/M2.S. 200Pa) |
8-12
|
8-12
|
5-8
|
14
|
15
|
8-12
|
|
Mechanical Finish
|
Singeing, calendaring, heat-set
|
Singeing,calendaring
|
Heat-set and Singed one side
|
Singeing
|
Singring
coating
Heat-set
|
Singeing
|
|
Chemical Finish
|
membrane
|
PTFE/PTFE
coated
anti-static
Water and oil repellent
|
PTFE impregnated peritoneal
|
|
|
PTFE coating, membrane
|
|
Warp Of Stretch Strength
|
800
|
1000
|
600
|
900
|
900
|
900
|
|
Welf Of Stretch Strength
|
1200
|
1300
|
800
|
1200
|
1200
|
1200
|
|
Resistance to Acid
|
Medial
|
Fair
|
Excellent
|
Excellen
|
Excellent
|
Fair
|
|
Resistance to Oxidation
|
Excellent
|
Good
|
Excellent
|
Excellent
|
Poor
|
Fair
|
|
Resistance to Alkali
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Good
|
|
Resistance to Hydrolysis
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Fair
|
|
Application
|
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
|
|||||
|
Size
|
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
|
|||||
|
Filter Bag Top Construction
|
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded |
|||||
|
Bottom Construction
|
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction
|
|||||

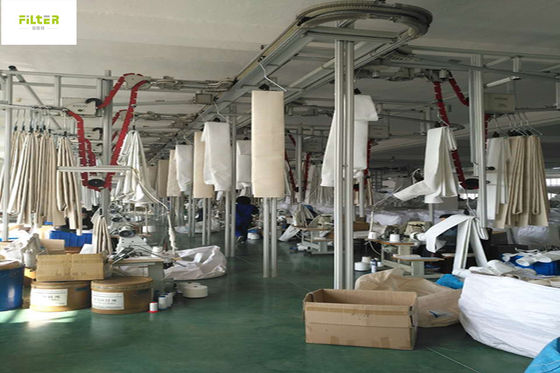

Producing Process:
