Home
>
products
>
Industrial Filter Cloth
>
|
|
| Place of Origin | Jiangsu |
| Brand Name | Filter |
| Model Number | Industrial Filter Cloth |

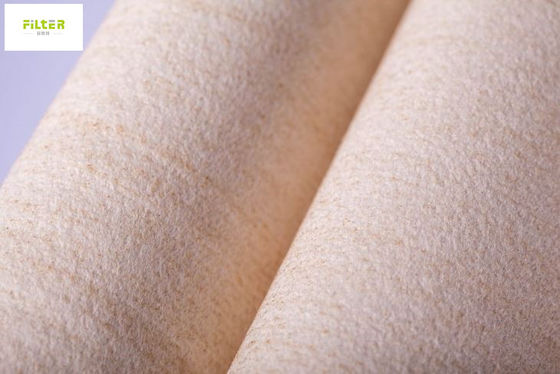

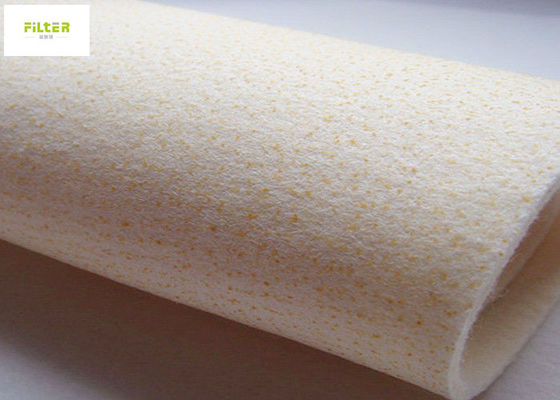

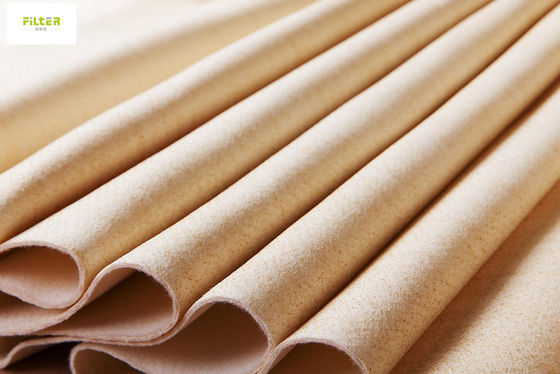

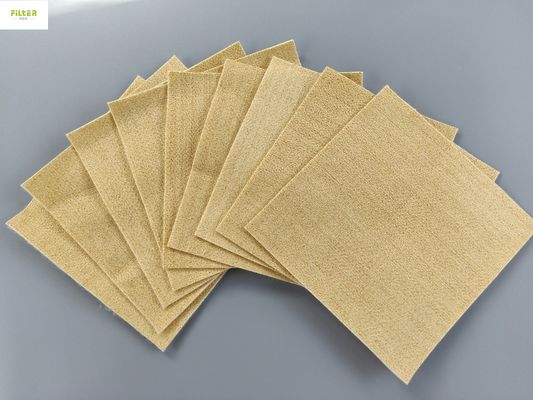

High temperature Nomex Aramid dust filter cloth bag for steel factory charcoal dust:
Description:
Timber Boiler filter bag and cage supplier Material:
nomex needle punched felt
450gsm, 500gsm, 550gsm
Finish Treatment:
Singed, calendered, heat set, water&oil repellent, PTFE membrane
Timber Boiler filter bag and cage supplier Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
Any length is available. Special size is customizable.
Process Method: sewing or welded.
Specification:
| Fibre | Nomex |
| Scrim | Nomex |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set,with PTFE membrane,oil&water repellent treatment. |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>900 Weft:>1200 |
| Tensile elongation (%): | Warp:<25 Weft:<45 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Excellent |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc. |
Product Feature:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
9. Mining Industry.
10. Grain Processing.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.

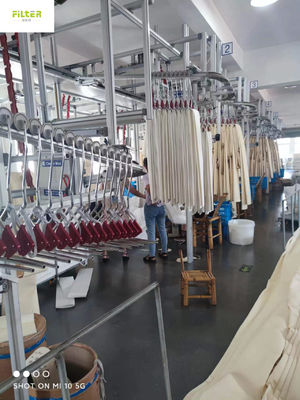

Producing Process:
Install Diagram:
Application:
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
