Anhui Filter Environmental Technology Co.,Ltd.
|
Product Details:
Payment & Shipping Terms:
|

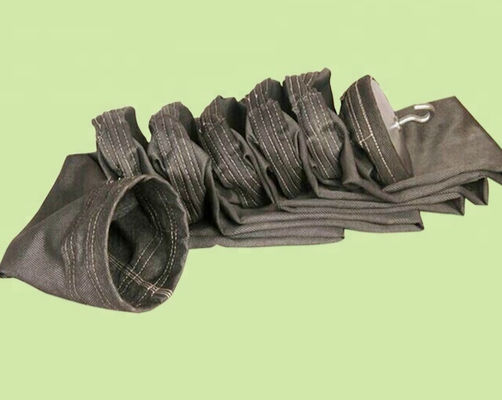

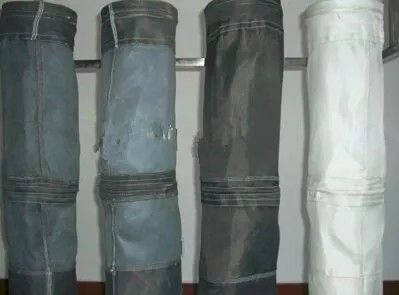

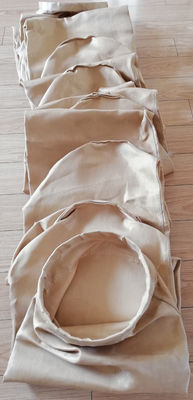

Product Name: | High Temperature Fibreglass Filter Bag | Weight: | 830GSM |
---|---|---|---|
Size: | Customized | Usage: | Dust Filter,Air Filter,steel,carbon Black,cement Plant |
Material: | Fiberglass | Application: | Industry Dust Collector,Cement Plant,dust Filter Bag For Cemet Factory And So On,Dust Filter |
Working Temperature: | 280 Degree | Thickness: | 1.8-2.8mm |
Temperature: | 130-300 Deg. | Feature: | High Temperature Resistance,Large Dust,High Quality,High Efficiency,Dust Collection |
Oem: | Yes | Sewing Thread: | High Temperature Fibreglass Thread |
Name: | Fiberglass Dust Filter Bag | ||
High Light: | 280 Degree Fiberglass Filter Bag,Thread Fabric Filter Plant Bags,50m/Roll Fabric Filter Plant Bags |
Description:
Glass fiber high temperature resistant filter material, because of its high temperature resistance, can be used for a long time below 260 °C, and the price is relatively low, and the gas permeability is ideal, so it has been widely used in many industries. It can be divided into two series of graphite treatment and silicone oil treatment. It is formed by continuous weaving of medium alkali glass fiber with crepe looms. The glass fiber filter material has high temperature resistance and good chemical resistance. And the dust is easy to peel off, so it is an ideal filter material for high-temperature soot emission enterprises, especially suitable for dust collection in cement shaft kiln enterprises and ironworks.
Specification:
Fibre | Fibreglass |
Scrim | Fibreglass |
Weight(G/M2) | 830 |
Thickness (mm) | 2.2 |
Width (mm) | ≤ 2.2 |
Length | 50m/roll |
Finish treatment | PTFE Dipping treatment and Heat-set,with PTFE membrane |
Air permeability (dm3/m2/S): | 20-25 |
Tensile strength (N/5× 20cm) | Warp:>1650 Weft:>2150 |
Tensile elongation (%): | Warp:<5 Weft:<5 |
Temperature (ºC): | Continue: 260 Instant: 300 |
Anti-acid | Excellent |
Anti-alkali | Fair |
Anti-abrasion | Excellent |
Hydrolytic stability | Fair |
Application | Mainly used in Steel Plant,Non-ferrous melting,Chemical,Carbon black and Building metails. |
Product Feature:
1) High temperature resistance with dimensional stability.
2) High Tensile breaking strength, acid and alkali resistance.
3) Mostly used as low price and high temperature condition.
Application:
1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy
6) Woodworking
7) Cement production
8) Powder processing
9) Steel melting
10) Material handling
11) Primary metals, including steel-making
12) Metals fabrication: grinding, sawing, sanding, polishing
13) Papermaking
14) Mixing and blending options
15) Mining
16) Glass Plants
17) Battery Plants
18) Other areas.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
RFQ
Q1: Are you factory or trading company?
We are manufacturer professional in fiberglass products.
Q2: What's your products ranges ?
1.Fiberglass yarn (E glass, C glass, Texturized yarn);
2.Fiberglass mesh & self-adhesive mesh tape;
3.Industrial fabric & texturized fabric;
4.Coated woven
5.Finished product (fire blanket & filter bag and others)
Q3: Can you supply the sample?
Yes, we can. We could supply small sample free at first time.
Freight collect.
Q4: Do you pass some factory audit or get any certification?
We are gold supplier of Made-in-China and get BV certification.
Our products have passed RoHS.
Q5. What is your packing?
It depends on products and your requirement.
1.Nude pack: PVC bag;
2.PVC bag with pallet;
3.Carton with pallet;If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
30-50% T/T in advance, balance before delivery/against the copy of B/L. We'll show you the photos of the products and packages before you pay the balance/delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 |
