Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag
  • Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag
  • Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag
  • Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag
  • Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag
  • Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag

Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag

Place of Origin jiangsu
Brand Name Filter
Model Number Fibreglass filter bag
Product Details
Product Name:
High Temperature Fibreglass Filter Bag
Weight:
830GSM
Size:
Customized
Usage:
Dust Filter,Air Filter,steel,carbon Black,cement Plant
Material:
Fiberglass
Application:
Industry Dust Collector,Cement Plant,dust Filter Bag For Cemet Factory And So On,Dust Filter
Working Temperature:
280 Degree
Thickness:
1.8-2.8mm
Temperature:
130-300 Deg.
Feature:
High Temperature Resistance,Large Dust,High Quality,High Efficiency,Dust Collection
Oem:
Yes
Sewing Thread:
High Temperature Fibreglass Thread
Name:
Fiberglass Dust Filter Bag
High Light:

Woven Fiberglass Filter Bag

,

1.8mm Fiberglass Filter Bag

,

Dust Collector Fiberglass Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/P, D/A, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

Lime kilns filtration and dust collection fibreglass filter filter bag sleeve

Description:



Glass fiber high temperature resistant filter material, because of its high temperature resistance, can be used for a long time below 260 °C, and the price is relatively low, and the gas permeability is ideal, so it has been widely used in many industries. It can be divided into two series of graphite treatment and silicone oil treatment. It is formed by continuous weaving of medium alkali glass fiber with crepe looms. The glass fiber filter material has high temperature resistance and good chemical resistance. And the dust is easy to peel off, so it is an ideal filter material for high-temperature soot emission enterprises, especially suitable for dust collection in cement shaft kiln enterprises and ironworks.



Specification:



Fibre Fibreglass
Scrim Fibreglass
Weight(G/M2) 830
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment PTFE Dipping treatment and Heat-set,with PTFE membrane
Air permeability (dm3/m2/S): 20-25
Tensile strength (N/5× 20cm) Warp:>1650 Weft:>2150
Tensile elongation (%): Warp:<5 Weft:<5
Temperature (ºC): Continue: 260 Instant: 300
Anti-acid Excellent
Anti-alkali Fair
Anti-abrasion Excellent
Hydrolytic stability Fair
Application Mainly used in Steel Plant,Non-ferrous melting,Chemical,Carbon black and Building metails.



Product Feature:



1) High temperature resistance with dimensional stability.

2) High Tensile breaking strength, acid and alkali resistance.

3) Mostly used as low price and high temperature condition.



Application:



1) Welding fume, foundry
2) Food, pharmaceutical
3) Shot blasting
4) Tobacco, metal, painting
5) Energy

6) Woodworking

7) Cement production

8) Powder processing

9) Steel melting

10) Material handling

11) Primary metals, including steel-making

12) Metals fabrication: grinding, sawing, sanding, polishing

13) Papermaking

14) Mixing and blending options

15) Mining

16) Glass Plants

17) Battery Plants

18) Other areas.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.

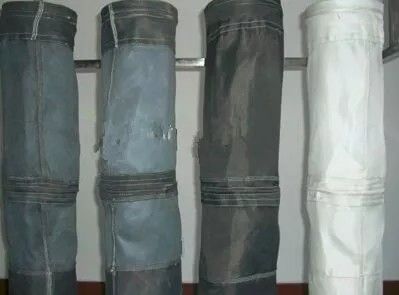

Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag 0



Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag 1

Packaging & Delivery:

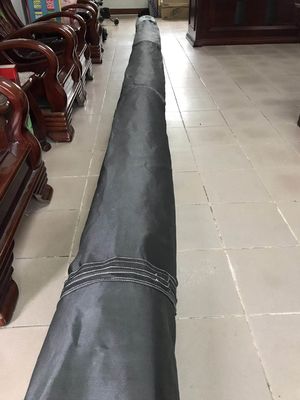

Aluminum Filtration 1.8mm Woven Fiberglass Filter Bag 2



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
