Product Details:
Payment & Shipping Terms:
|
| Usage: | Dust Filter,Air Filter,Industry Dust Collector | Material: | Fibreglass |
|---|---|---|---|
| Size: | Custiomized | Application: | Industry Dust Collector,Dust Filter,Bag House Filter,Liquid-solid Separation,Pocket-type Dust Collector |
| Working Temperature: | 130 - 260 Degree | Thickness: | 1.9~2.5mm |
| Feature: | High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality | Type: | Dust Filter Bag |
| Product Name: | Dust Filter Bag,Fiberglass Cement Industrial Dust Collector Filter Bag,PTFE Membrane Fiberglass Filter Cloth Needled Felt Filter Bag,air Reverse Dust Filter | Top: | Holder |
| Support Ring: | 7pcs Carbonsteel Ring Or SS304 Ring | ||
| High Light: | Cement Fiberglass Filter Bag,2.5mm Fiberglass Filter Bag,SS304 Ring Fiberglass Filter Bag |
||

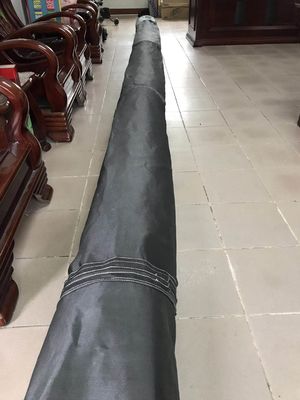

High Efficient Fibreglass Filter Cloth Dust Filter Bag for Cement Plant and Power Plant
Description:
Material: Medium Alkali Fibreglass filter cloth
Weight: 630GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158,Φ 200, Φ300 etc. We make it as your requirements.
Length: 1000mm~120000mm. We make is as your requirements.
Specification:
| Fibre | Medium Alkali Fibreglass |
| Scrim | Medium Alkali Fibreglass |
| Weight(G/M2) | 630 |
| Thickness (mm) | 0.6 |
| Organization Structure | Plain Weave |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Graphite Treatment. |
| Air permeability (dm3/m2/s): | 220~310 |
| Tensile strength (N/5× 20cm) | Warp:>1800 Weft:>2150 |
| Tensile elongation (%): | Warp:<5 Weft:<5 |
| Temperature (ºC): | Continue: 260 Instant: 280 |
| Application | Mainly used in Steel Plant,Cement Plant,Combustion,Coal burning boiler,Waster incineration,Carbon black producing. |
Product Feature:
1.High temperature resistance.
2.Good anti-acid/anti-alkali capacity.
3.Excellent anti-abrasion capacity.
4.High filtration efficiency.
5.Good raw material, competitive price.
6.Fast delivery.
7.Size can be customized.
Application:
1. Steel Plant.
2. Cement Plant.
3. Combustion.
4. Coal burning boiler.
5. Waster incineration.
6. Carbon black producing.
Making method:

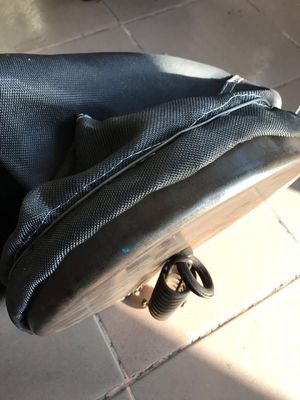

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) | ||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
