Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector
  • Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector
  • Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector
  • Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector
  • Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector
  • Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector

Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector

Place of Origin jiangsu
Brand Name Filter
Model Number Filter Bag Cage
Product Details
Product Name:
Galvanized Steel Filter Bag Cage
Applicable Industrie:
Cement Plant,power Plant,steel Plant
Feature:
Smooth, Slight, Straight
Main Function:
Filter Bag Skeleton
Shape:
Custom Shape
Size:
Customized
High Light:

baghouse filter cages

,

dust collector cages

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

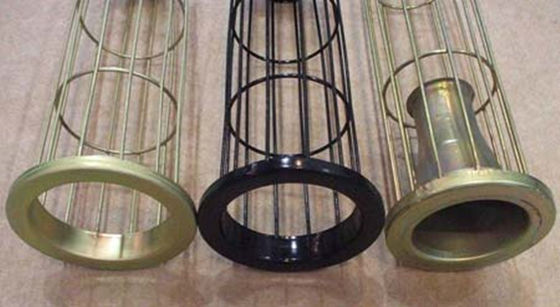

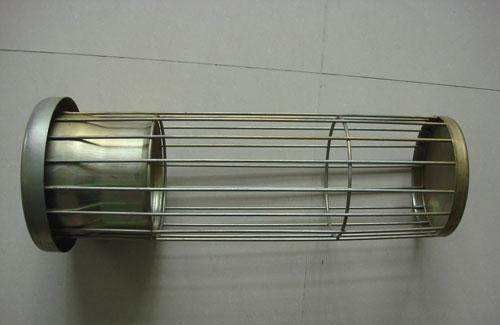

Dust collection organo silicone Galvanized / stainless steel / carbon steel filter bag cage


We surpply full range of filter bag cages; each cage can fit to the requirements of being light, handy, smooth and straight. Cage resembles the rib of bag. It should be light, handy, easy to install, maintain, and it is smooth and straight, to prevent the bag from damage.



1.material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.

The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.

Provide us the data of filter bag cage:


The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. So the detailed and accurate data can ensure the normal use of the product to the maximum extent. It's great that you can provide design drawings, or if you provide data according to the following information.
1. Filter cage material and size
2. Quantity of vertical wires
3. Space of Horizontal wires
4. Wire and Ring diameter
5. Cell plate sizes of dust collector or baghouse



Specification:




Specifications For Filter Bag Cage with venturi for dust collector

Types Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires 8/10/12/16/20/24 vertical wires
Ring Space Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness Wire thickness ranges are 2mm to 5mm
Material Carbon Stee, Galvanized Steel, Stainless Steel
Finishment Epoxy, PVC vinyl coating
Packaging Cages are packed in custom designed cartons
Usage Dust from factory of mine, wood,Cement, chemical, medicine,
dying,Paint, plastic,food & other industry,such as coal fired
power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages 1.no corrosion
2.no damage
3.3-5 times longer life than other bag Cage with steel



Joint types of filter bag:


Different joint different price, please contact us to know more detail about joint.

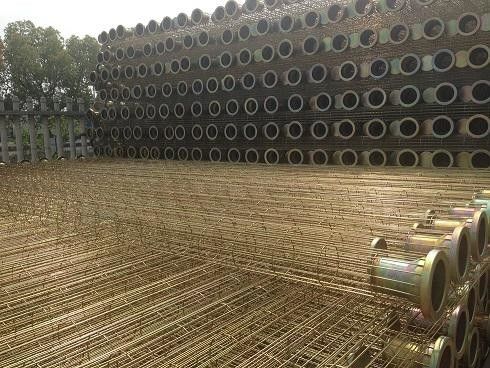

Packaging & Delivery:



Galvanized Steel Filter Bag Cage Smooth Surface For Air Dust Collector 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
