|Product Name:||PTFE（PTFE） Filter Bag||Usage:||Dust Filter|
|Type:||Pocket Filter, PTFE Filter||Weight:||750GSM|
|Size:||Customized||Material Of Bag:||PTFE|
|Material:||PTFE,Fiberglass / P84 / PTFE / Nomex||Application:||Industry Dust Collector,dust Filter Bag For Cemet Factory And So On,baghouse Dust Collector|
|Shape:||Round Or Customized||Micron Rating:||Non Woven Filter Cloth|
|Bag Top Type:||Carbon Steel Snapband,SS304 Snapabnd||Temperature:||130-300 Deg.|
pps filter bags,
polythene dust extractor bags

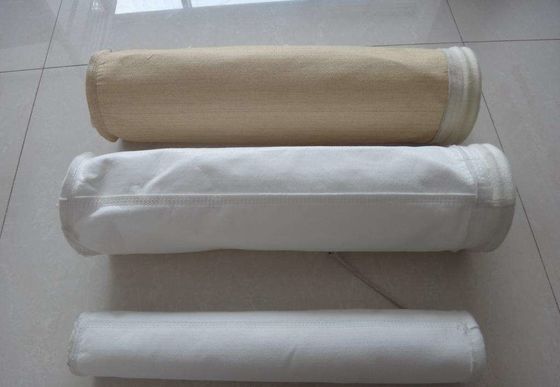

PTFE(Teflon) Filter Bag
Material:PTFE filter cloth
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing,Calendering and PTFE dipping treatment.|
|Air permeability (m3/m2/min):||5.47|
|Tensile strength (N/5× 20cm)||Warp:>908 Weft:>1026|
|Tensile elongation (%):||Warp:<35 Weft:<50|
|Temperature (ºC):||Continue: 250 Instant: 280|
|Application||Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing.|
1. Be composed of 100% pure PTFE.
2. It can operate at 240oC continuously.
3. Acid and alkali resistance,corrosion resistance and have strong chemical stability(0-14PH)
4. It can be used under high humidity environment.
5. Low shrinkage rate even if under high temperature.
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.

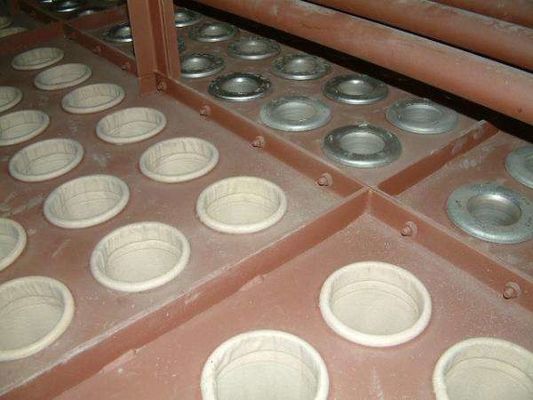

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
