Place of Origin | china |
Brand Name | Filter |
Model Number | liquid filter bag |

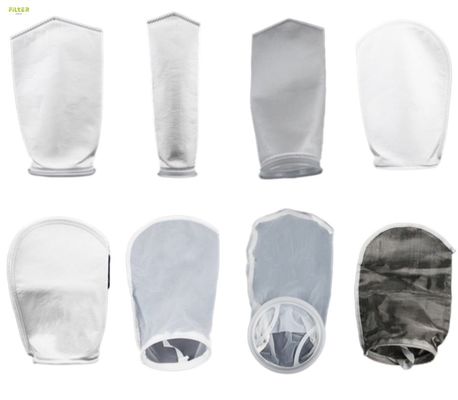

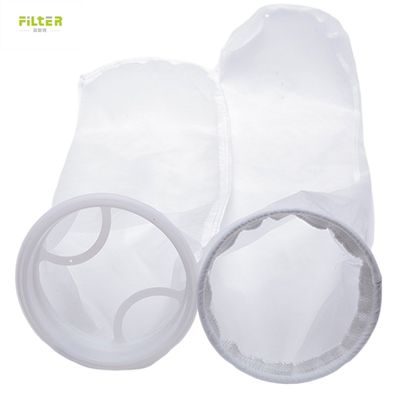

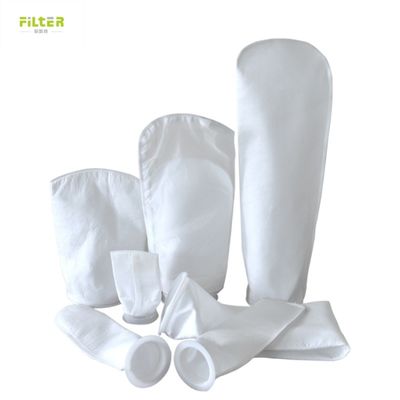

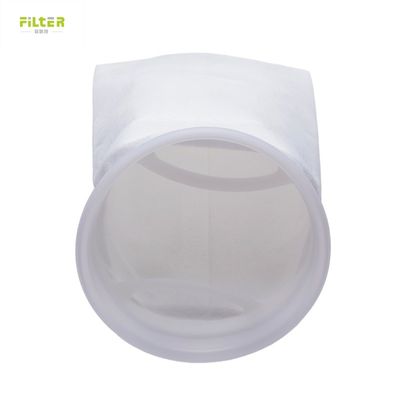

5 micorn filter bags polyester nylon pp water filter bag:
1. Characteristic nylon mesh bag/drawstring mesh bag:
Product Name | Liquid Filter Bags | ||
Material Available | Nylon (NMO) | Polyester (PE) | Polypropylene (PP) |
Maximum Operating Temperature | 275-300° F (135-149° C) | 275-325° F (135-162° C) | 200-220° F (93-104° C) |
|
5,10,25, 50, 100, 150, 200, 300, 400, 500, 600, or 5-2000um | 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 | 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300 |
Size
|
1 #: 7" x 16" (17.78 cm x 40.64 cm)
2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm)
4 #: 4" x 14" (10.16 cm x 35.56 cm)
5 #: 6 " x 22" (15.24 cm x 55.88 cm)
Customized size
|
||
Filter Bag Area(m²) /
Filter Bag Volume (Liter)
|
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
|
||
Collar Ring | Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
|
||
Remarks | OEM: support
Customized item: support
|
The Chemical Resistance Of Liquid Filter Bag | |||
Fiber Material | Polyester (PE) | Nylon (NMO) | Polypropylene (PP) |
Abrasion Resistance | Very Good | Excellent | Very Good |
Weakly Acid | Very Good | General | Excellent |
Strongly Acid | Good | Poor | Excellent |
Weakly Alkali | Good | Excellent | Excellent |
Strongly Alkali | Poor | Excellent | Excellent |
Solvent | Good | Good | General |
4. The filter mesh widely used in all kinds of filtration and separation, such as:
1. air filter mesh in air conditioner filter.
2. liquid filter mesh for milk, juice, cheese, soya bean ect.
3. flour, solid mesh for milling.
4. We can deep produce it into filter disc and filter strainers.
5. hydrocarbon extraction.
Producing Process(Air Filter Bag and Liquid Filter Bag):
Applications:
More Production:
Packaging & Delivery:
Supply Ability
|
10000 Pieces per day filter bag
|
||
Packaging Details
|
Export carton box
|
||
Lead Time
|
3-15 days after your deposit
|
||
Port
|
Ningbo/Shanghai
|
1. For small quantity, shipped by courier.
2. For large quantity, shipped by air or by sea.
3. Tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, then we can send to your forwarder for free.
Exhibization:
Certificate:
FAQ:
A: We are factory with 28 years' manufacturing and sales experience.
A: Generally it is 3-7 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the freight cost.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Shipping Details:
SHIPPING (Normally arrive port time in working days) |
||||
Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
DHL/FEDEX/UPS/TNT | ||||
North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
