Home > products > Liquid Filter Bag >

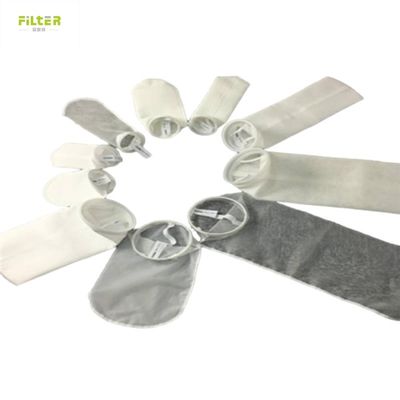

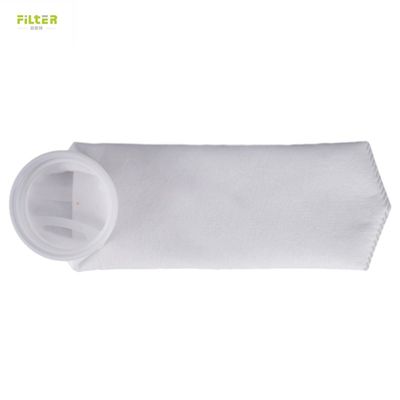

25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration
  • 25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration

25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration

Place of Origin china
Brand Name Filter
Model Number liquid filter bag
Product Details
Usage:
Liquid Filter
Type:
Water Liquid Filter Bag,oil Filter Bag
Material Of Bag:
PTFE,Nylon,PP,PE
Application:
Water,coffee,Liquid Filteration
Size:
Custiomized
Product Name:
Liquid Filter Bag
Micron Rating:
5 10 25 50 75 100 150 200 300 400 500 Micron
Sample:
Avaliable
Top:
String,SS304 RING Or Plasic Ring
Body:
Sewing Thread Or Hot-melt
Bottom:
Sewing Thread Or Hot-melt
Trademark:
Filter
High Light:

Liquid Filter Bag 75 Micron

,

Coffee Polypropylene Mesh Filter Bag

,

PE Water Liquid Filtration Bag

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

Liquid Filter Bag Diameter (Inch/cm): 7/18/ 7/18/ 4/10.2:



PRODUCT DESCRIPTION:

There are many standard sizes of liquid filter bags, different sizes and shapes of filter socks can be customized.

PRODUCT INFORMATION

Custom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter Bag

Brand FILTER
Material PE / PP / NMO / PTFE
Size 1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/
4# 102*360mm/ 5# 152*560mm
Filtration accuracy 0.5-300 microns(µm)
Bag body types Stitched, Welded
Bag top types Plastic ring top, Metal ring top, Raw top, Drawstring top

Bag bottom types
"Arc" shape bottom, "V" shape bottom

Note: We can provide you with customized products!
25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration 1
The filter sock are available in many different sizes and shapes. The filter sock could be custom made. Normal used sizes of filter sock are.
Model Filter Bag Area (m²) Filter Bag Volume (Liter) Filter Bag Diameter (Inch/cm) Filter Bag Length (Inch/cm)

1#
0.19 7.9 7/18 16/41

2#
0.41 17.3 7/18 32/81

3#
0.05 1.4 4/10.2 8.25/21

4#
0.09 2.5 4/10.2 14/36

5#
0.22 8.1 6/15.2 22/56

Filter material performance
Ilter material Temperature
resistance
range
Strong
acid
Weak
acid
Strong
base
Weak
base
Oils
and fats
Aromatic Alcohol
ether
Organic
solvents
Hydrolyzed
organisms

Polyester (PE)
130-150   Δ     Δ Δ Δ Δ Δ

Polypropylene
(OPP / PO)
90-110 Δ Δ Δ Δ   Δ   Δ Δ

Nylon (NMO)
130-150     Δ Δ Δ     Δ Δ

Polytetrafluoroethylene
(PTFE)
250-300 Δ Δ Δ Δ Δ Δ Δ Δ Δ

Precision conversion table

Micron (μm)
1 3 5 10 20 25 50 70 100 125 149
Mesh 15000 5000 2500 1250 625 550 300 200 140 120 100

Micron (μm)
200 250 300 350 500 590 710 840 1000 1200 1400

Mesh
70 60 50 45 35 30 25 20 18 16 14

PRODUCT DETAILS

Custom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter Bag


1. Five-thread sewing hemming technology High pressure resistance.
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.

2. Hot melt welding Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect.
Use digital co-located multi-point welding equipment to ensure that each point of welding is firm.
Without any special bleaching and dyeing treatment, it fully complies with environmental standards.

Bottom TypeCustom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter Bag
Welded arc Stitched arc Welded V


PRODUCT REAL SHOT
Custom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter BagCustom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter BagCustom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter BagPRODUCT PROCESS(AIR FILER BAG AND LIQUID FILTER BAG):

25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration 7

APPLICATIONS:

25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration 8


ADVANTAGES:

1) We have experience in providing OEM services to many big factories in USA, Japan, Taiwan, etc., and have directly or indirectly sold to more than 50 countries, such as Europe, Japan and USA.

2) We professionally produce various kinds of the filter bag,filter cloth,filter Cartridgeand its fittings for more than 20 years.

3) We are the manufacturer, can assure the price ,quality and shipment.

CERTIFICATE:



25 50 75 100 Micron Liquid Filter Bag For Water Coffee Filtration 9
