Anhui Filter Environmental Technology Co.,Ltd.
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester,Polypropylene,Nomex,PPS,P84 Filter Bag | Applicable Industrie: | Steel Plant,power Plant,cement Plant Etc. |
|---|---|---|---|
| Usage: | Dust Filter | Weight: | 450GSM~550GSM |
| Size: | Customized | Type: | Pocket Filter,Mesh Filter Bag,circular Size Filter Bag,polyester Dust Filter Bag,Fabric Dust Collector |
| Material Of Bag: | Non-woven,PP | Material: | Arcylic,Polyester,P84,PPS,Aramid,PTFE Etc. |
| Application: | Industry Dust Collector,Dust Filter,Bag House Filter,Liquid-solid Separation,Pocket-type Dust Collector | Shape: | Round |
| Color: | White | Working Temperature: | 130-150℃ |
| Item: | Filter Bags For Baghouse,PE Needle Felt Filter Dust Collector Filter Bag,Anti-abrasion Aramid Material Dust Collector Filter Bag | Thickness: | 1.8mm |
| Feature: | High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality | ||
| High Light: | Filter Sleeves 850gsm,Nomex Dust Collector Filter Sleeves,Filter Sleeves 450gsm |
||

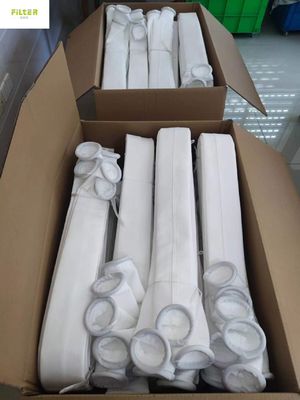

450gsm~850gsm Polypropylene,Polyester,PPS,PTFE,P84,Nomex dust collector filter sleeves:
Description:
Technical Parameters:
|
Fiber Composition
|
Polyester
|
Polyester (PET) with PTFE membrane
|
PTFE
|
|
PPS
|
Nomex
|
|
Weight (g/m2)
|
500
|
500
|
750-800
|
500
|
500-550
|
450-600
|
|
Thickness (mm)
|
1.7-2.0
|
1.7-2.0
|
1.2-1.6
|
2.1
|
1.8-2.0
|
1.9-2.4
|
|
Running Temperature (°C)
|
130
|
130
|
240
|
180
|
160
|
200
|
|
Peak Temperature (°C)
|
150
|
150
|
260
|
260
|
190
|
240
|
|
Air Permeability
(M3/M2.S. 200Pa) |
8-12
|
8-12
|
5-8
|
14
|
15
|
8-12
|
|
Mechanical Finish
|
Singeing, calendaring, heat-set
|
Singeing,calendaring
|
Heat-set and Singed one side
|
Singeing
|
Singring
coating
Heat-set
|
Singeing
|
|
Chemical Finish
|
membrane
|
PTFE/PTFE
coated
anti-static
Water and oil repellent
|
PTFE impregnated peritoneal
|
|
|
PTFE coating, membrane
|
|
Warp Of Stretch Strength
|
800
|
1000
|
600
|
900
|
900
|
900
|
|
Welf Of Stretch Strength
|
1200
|
1300
|
800
|
1200
|
1200
|
1200
|
|
Resistance to Acid
|
Medial
|
Fair
|
Excellent
|
Excellen
|
Excellent
|
Fair
|
|
Resistance to Oxidation
|
Excellent
|
Good
|
Excellent
|
Excellent
|
Poor
|
Fair
|
|
Resistance to Alkali
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Good
|
|
Resistance to Hydrolysis
|
Medial
|
Poor
|
Excellent
|
Excellent
|
Excellent
|
Fair
|
|
Application
|
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
|
|||||
|
Size
|
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
|
|||||
|
Filter Bag Top Construction
|
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded |
|||||
|
Bottom Construction
|
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction
|
|||||
Producing Process:
Install Diagram:
Applications:
More Production:
Packaging & Delivery:
Foreign Trade Team:
Exhibization:
Customer Visit:
Certificate:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
FAQ:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, FCA, EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
