Liquid Filter Bag
>
|
|
| Place of Origin | china |
| Brand Name | Filter |
| Model Number | liquid filter bag |

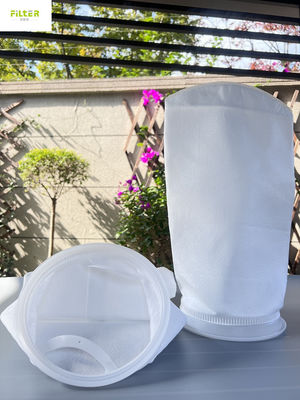

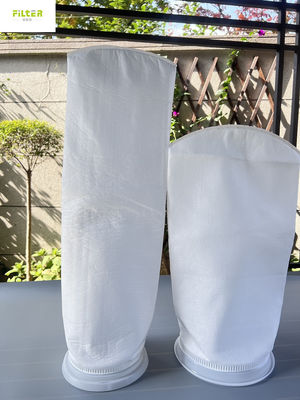

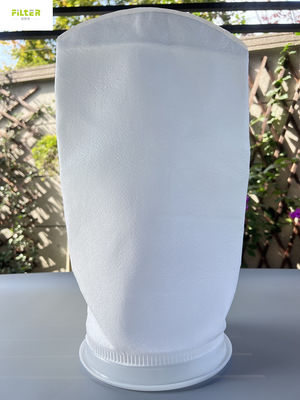

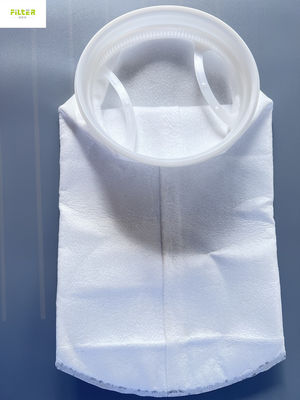

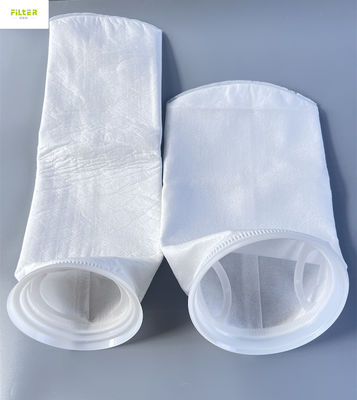

PP PE Nylon PTFE Polyester Needle Felt Filter Sock Liquid Filter Bag for Liquid Filtration:
1. Cartridge filters are suitable for liquid precision filtering to remove tiny impurities and bacterium, and are widely used in the following industries.
* Oil & gas. Produced water filtration; injection water filtration; completion fluid filtration; natural gas extraction; amine sweetening; desiccant dehydration;
* Metallurgy. Hydraulic and lubrication system filtration;
* Machining. Machine tool coolant circulating filtration;
* Food & beverage. Fermented beer filtration, beer final filtration, wine filtration, bottled water filtration, soft drink filtration, juice filtration, dairy filtration;
* Water treatment. household drinking water filtration, domestic wastewater filtration;
* Pharmaceuticals. Ultra-pure water filtration
* Marine filtration system. Seawater desalination.
Contact: Nancy
Email: nancy@airfilterbag.com
Whatsapp/WeChat/Mob.: + 8615665409496
| Product Name | Liquid Filter Bags | ||
| Material Available | Nylon (NMO) | Polyester (PE) | Polypropylene (PP) |
| Maximum Operating Temperature | 275-300° F (135-149° C) | 275-325° F (135-162° C) | 200-220° F (93-104° C) |
|
|
5,10,25, 50, 100, 150, 200, 300, 400, 500, 600, or 5-2000um | 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 | 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300 |
|
Size
|
1 #: 7" x 16" (17.78 cm x 40.64 cm)
2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm)
4 #: 4" x 14" (10.16 cm x 35.56 cm)
5 #: 6 " x 22" (15.24 cm x 55.88 cm)
Customized size
|
||
|
Filter Bag Area(m²) /
Filter Bag Volume (Liter)
|
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
|
||
| Collar Ring | Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
|
||
| Remarks | OEM: support
Customized item: support
|
||
| The Chemical Resistance Of Liquid Filter Bag | |||
| Fiber Material | Polyester (PE) | Nylon (NMO) | Polypropylene (PP) |
| Abrasion Resistance | Very Good | Excellent | Very Good |
| Weakly Acid | Very Good | General | Excellent |
| Strongly Acid | Good | Poor | Excellent |
| Weakly Alkali | Good | Excellent | Excellent |
| Strongly Alkali | Poor | Excellent | Excellent |
| Solvent | Good | Good | General |
4. The filter mesh widely used in all kinds of filtration and separation, such as:
• Electric paint coating line filtration.
• Pre-discharge treatment, circuit board production cycle water filtration.
• Automobile production coating line, metal casting, pre-ultrafiltration protection filtration, spray water filtration and oil filtration.
• Solid-liquid separation in petrochemical, light industrial food, metallurgy, electronics, pharmaceutical, etc.
• Handling pre-cleaning, electrophoretic paint, spray rinse water, circulating water, etc. in the automotive industry.
• Solvent purification treatment, resin treatment and wastewater treatment in the paint industry.
Producing Process(Air Filter Bag and Liquid Filter Bag):
Applications:
More Production:
Packaging & Delivery:
|
Supply Ability
|
10000 Pieces per day filter bag
|
||
|
Packaging Details
|
Export carton box
|
||
|
Lead Time
|
3-15 days after your deposit
|
||
|
Port
|
Ningbo/Shanghai
|
||
1. For small quantity, shipped by courier.
2. For large quantity, shipped by air or by sea.
3. Tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, then we can send to your forwarder for free.
Exhibization:
Certificate:
FAQ:
A: We are factory with 28 years' manufacturing and sales experience.
A: Generally it is 3-7 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the freight cost.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
