SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread
  • SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread

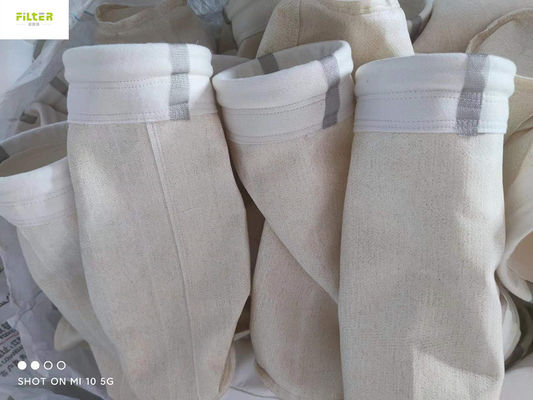

SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread

Place of Origin Anhui
Brand Name Filter
Model Number FLT-FB-416
Product Details
Product Name:
Nomex Aramid PPS PTFE P84 Polyester Filter Bag
Applicable Industrie:
Industrial Dust Collector
Sewing:
Double Stitching Or Hot Melt
Certificate:
ISO9001:2008
Weight:
450GSM~550GSM
Size:
Round/Flat/Custiomized
Material Of Bag:
Nomex,PPS,PTFE,Polyester,fiberglass
Type:
Pocket Filter
Top:
Stainless Steel Snap Band
Bottom:
Reforcement 75~100mm
Normal Temperature:
204deg.c
High Temperature:
240deg.c
Shape:
Round,Customers' Request
Package:
OEM Package,polybags/cartons/customized
Micron Rating:
99.99%
Name:
Aramid/NOMEX Dust Filter Bag
Oem:
Custom Size Acceptable
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
High Light:

SS304 Snapband Aramid Filter Bag

,

SS304 Snapband Nomex Filter Bag

,

Nomex Filter Bags 450GSM

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

High Temperature SS304 Snapband Aramid Nomex Filter Bag with PTFE Sewing Thread and Glue:



Description:



We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications.



Nomex filter bags are made of 100% Meta-aramid /nomex fiber ,it is the best choice for asphalt plant dust collector , which are of metamax filter bags, aramid filter bags or baghouse filter bags.



1. 100% Meta-aramid /nomex fiber
2. high tensile strength
3. SGS


SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread 0




Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 450~550
Thickness (mm) 1.9~2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>800 Weft:>1000
Tensile elongation (%): Warp:<35 Weft:<60
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent



Production Feature:



Nomex filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature.



Specification:



1. Material :with100% Meta-nomex fiber
2. Scrim: with meta-aramid /nomex staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4. Air permeability (l/m2/s): 150~300
5. Temperature (℃): Continue: 204, Instant: 240



Advantages:



1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .



Application:



Nomex(Aramid) filter bags are widely used in asphalt industry, cement industry, chemical industry,Iron and
steel industry, themal power industry , Aluminum industry , etc.

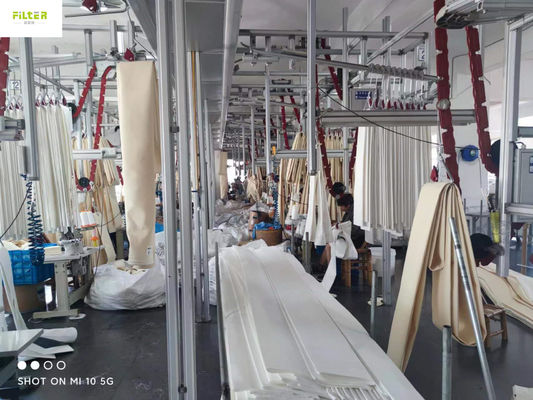

Producing Process:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1



Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2

Applications:



SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread 3


More Production:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 4



Packaging & Delivery:



SS304 Snapband Aramid Nomex Filter Bag With PTFE Sewing Thread 5


Foreign Trade Team:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6

Exhibization:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7



Customer Visit:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
