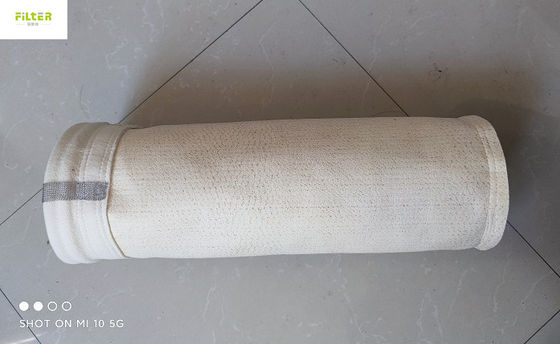

Custom industrial filter bags 550GSM Aramid (Nomex) Filter Bag with SS Wire:
Description:
We select Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries .
The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas.
The normal specification of Nomex Filtration Felt :450 gsm , 500 gsm , 550 gsm , 600 gsm.
Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment .
Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector.
Technical Data:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
Production Feature:
1. High efficient filtration level.
2. Depth type filtration.
3. Wide range of chemically compatible media.
4. High temperature resistance.
5. High flow efficiency.
6. High air to cloth ratio.
7. Various coatings are available.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.

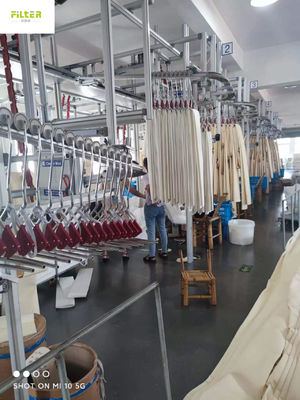

Producing Process:
Install Diagram:
Applications:
More Production:
Packaging & Delivery:
Foreign Trade Team:
Exhibization:
Customer Visit:
Certificate:
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
