550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue
  • 550GSM Nomex Filter Bag With High Temperature Silicone Glue

550GSM Nomex Filter Bag With High Temperature Silicone Glue

Place of Origin jiangsu
Brand Name Filter
Model Number FLT-FB-412
Product Details
Product Name:
Nomex(Aramid) Filter Bag
Applicable Industrie:
Cement Plant,Power Plant,Steel Plant,Mining Plant Etc.
Usage:
Industry Dust Collector
Type:
Pocket Filter, Aramid Filter
Weight:
450GSM~550GSM
Size:
Customized
Material Of Bag:
Nomex,PPS,PTFE,Polyester,Aramid
Surface Finishing:
Singed,Calandered,Heat-set,oil&watere Repellent Treatment
Top:
SS304 Sanpband Or According To Your Requirements
Bottom:
Reforcement 75~100mm
Normal Temperature:
204deg.c
High Temperature:
240deg.c
Shape:
Round,Customers' Request
Package:
OEM Package,polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Name:
NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag
Oem:
Welcomed
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
Highlight:

Nomex Filter Bag 550GSM

,

550GSM Industrial Dust Filter Bag

,

High Temperature Silicone Nomex Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

550GSM Nomex Filter Bag with High Temperature silicone glue for industrial dust filter​:



Description:



We select Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries .


The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas.


The normal specification of Nomex Filtration Felt :450 gsm , 500 gsm , 550 gsm , 600 gsm.


Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment .


Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector.


550GSM Nomex Filter Bag With High Temperature Silicone Glue 0




Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 450~550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>1000 Weft:>1200
Tensile elongation (%): Warp:<50 Weft:<55
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent



Production Feature:



1. High efficient filtration level.

2. Depth type filtration.

3. Wide range of chemically compatible media.

4. High temperature resistance.

5. High flow efficiency.

6. High air to cloth ratio.

7. Various coatings are available.



Application:



1. Food and Beverage Industry.

2. Pharmaceutical Industry.

3. Non-ferrous Metallurgy.

4. Chemcial Plant.

5. Building Section and Mining Industry.

6. Cement Plant.

7. Power Plant.

8. Steel Plant.

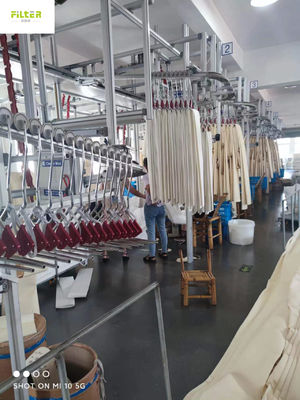

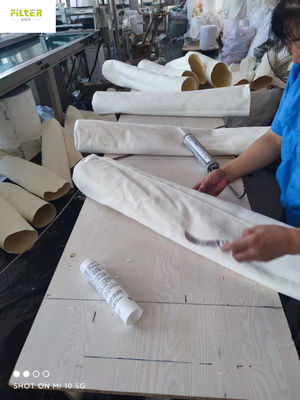

Producing Process:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1



Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2

Applications:



550GSM Nomex Filter Bag With High Temperature Silicone Glue 3


More Production:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 4



Packaging & Delivery:



550GSM Nomex Filter Bag With High Temperature Silicone Glue 5


Foreign Trade Team:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6

Exhibization:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7



Customer Visit:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9
