Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass
  • Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass

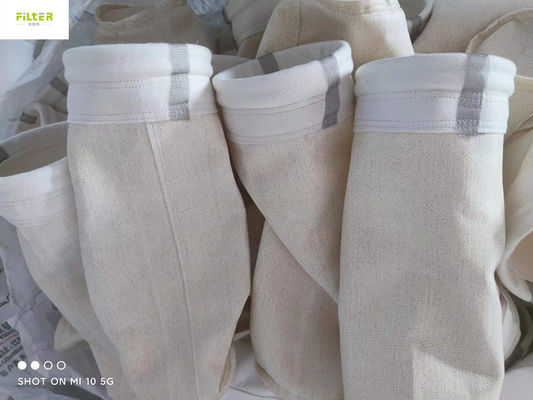

Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass

Place of Origin jiangsu
Brand Name Filter
Model Number FLT-FB-410
Product Details
Product Name:
Nomex(Aramid) Filter Bag
Applicable Industrie:
Cement Plant,Power Plant,Steel Plant,Mining Plant Etc.
Usage:
Industry Dust Collector
Type:
Pocket Filter, Aramid Filter
Weight:
450GSM~550GSM
Size:
Customized
Material Of Bag:
Nomex,Aramid,Non-woven
Surface Finishing:
Singed,Calandered,Heat-set
Top:
SS304 Sanpband
Bottom:
Reforcement 75~100mm
Normal Temperature:
204deg.c
High Temperature:
240deg.c
Shape:
Round,Customers' Request
Package:
OEM Package,polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Name:
ARAMID/NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag
Oem:
Welcomed
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
High Light:

Dust Collector Filter Bag 450GSM

,

Round Fiberglass Filter Bag

,

Aramid Filter Bag 450GSM

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

Nomex, Aramid, Polyester, PPS, P84, PTFE, Fiberglass Dust Collector Filter Bag:



Description:



We select Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries .


The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas.


The normal specification of Nomex Filtration Felt :450 gsm , 500 gsm , 550 gsm , 600 gsm.


Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment .


Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector.


Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1




Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 450~550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>1000 Weft:>1200
Tensile elongation (%): Warp:<50 Weft:<55
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent



Production Feature:



1. High efficient filtration level.

2. Depth type filtration.

3. Wide range of chemically compatible media.

4. High temperature resistance.

5. High flow efficiency.

6. High air to cloth ratio.

7. Various coatings are available.



Application:



1. Food and Beverage Industry.

2. Pharmaceutical Industry.

3. Non-ferrous Metallurgy.

4. Chemcial Plant.

5. Building Section and Mining Industry.

6. Cement Plant.

7. Power Plant.

8. Steel Plant.

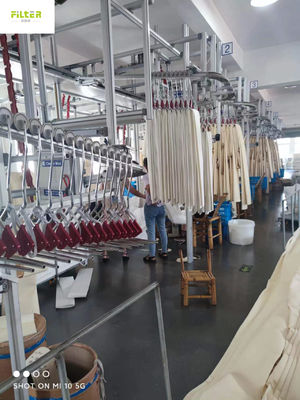

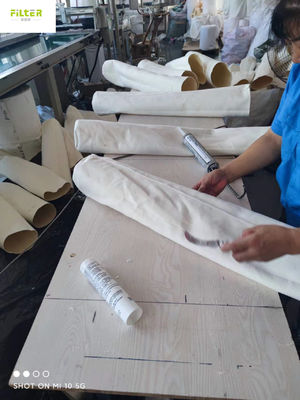

Producing Process:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1





Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2

Applications:



Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass 3

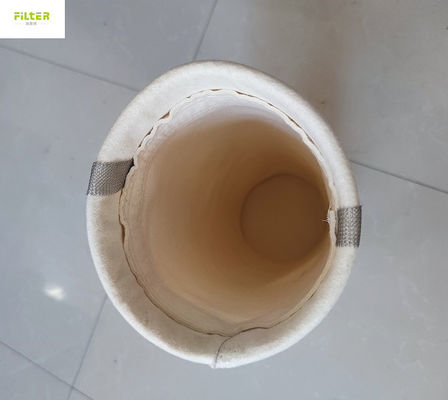

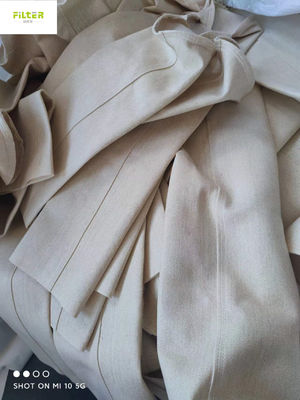

More Production:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 4



Packaging & Delivery:



Dust Collector Filter Bag Nomex Aramid Polyester PPS P84 PTFE Fiberglass 5


Foreign Trade Team:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 6

Exhibization:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 7



Customer Visit:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 8

Certificate:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 9



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
