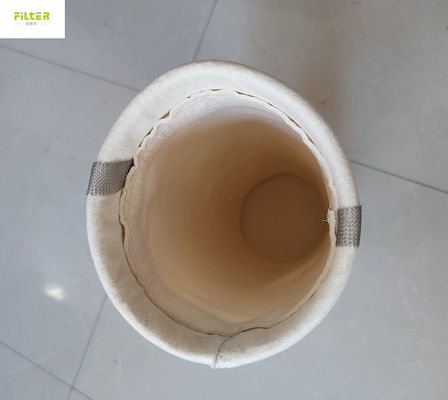

Dust Collector Filter Bags Nomex Aramid With SS Ring Top

Place of Origin china
Brand Name filter
Model Number FLT-FB-350
Product Details
Usage:
Dust Filter,Air Filter,Liquid Filter,dust Collector,Liquid Filtration
Type:
Pocket Filter,Mesh Filter Bag,Vacuum Cleaner Paper Bag,Dust Filter Bag,Non-woven Filter
Material Of Bag:
Aramid,Non-woven,Polyester,PTFE,Fiberglass
Application:
Industry Dust Collector,cement Plant,Dust Collector Bag House,asphalt Mix,Industrial Dust Removal
Applicable Industries:
Manufacturing Plant,Energy & Mining,Construction Works
Product Name:
NomexFilter Bag,filter Bag,Nomex,jet Dust Filter,Polyester Anti-Static Needle Felt Filter Bag
Size:
Custiomized
Thickness:
1.8-2.0mm
Material:
Polyester Fiber,Aramid,nomex Metamax,PPS,Fibregass
Temperature:
90-280
Package:
Polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Name:
NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag,250 Micron Bag Filter Cage Aramid Filter Bag,liquid Filter Bag
Sample:
Available And Free
Oem:
Welcomed
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
Highlight:

Dust Collector Filter Bags 2.0mm

,

SS Ring Dust Collector Filter Bags

,

Dust Collector Filter Bags Nomex

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

Dust Collector Filter Bag Nomex Aramid Filter Sleeves with Ss Ring Top:



Description:



We select Dupont Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries .
The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas.
The normal specification of Nomex Filtration Felt :
400 gsm , 450 gsm , 500 gsm , 550 gsm , 600 gsm ,
Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment .
Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector.


Dust Collector Filter Bags Nomex Aramid With SS Ring Top 0

Technical Specification:

Fiber Composition

Polyester
Polyester (PET) with PTFE membrane

PTFE

P84

PPS

Nomex
Weight (g/m2)
500
500
750-800
500
500-550
450-600
Thickness (mm)
1.7-2.0
1.7-2.0
1.2-1.6
2.1
1.8-2.0
1.9-2.4
Running Temperature (°C)
130
130
240
180
160
200
Peak Temperature (°C)
150
150
260
260
190
240
Air Permeability

(M3/M2.S. 200Pa)
8-12
8-12
5-8
14
15
8-12
Mechanical Finish
Singeing, calendaring, heat-set
Singeing,calendaring
Heat-set and Singed one side
Singeing
Singring
coating
Heat-set
Singeing
Chemical Finish
membrane
PTFE/PTFE
coated
anti-static
Water and oil repellent

PTFE impregnated peritoneal


PTFE coating, membrane
Warp Of Stretch Strength
800
1000
600
900
900
900
Welf Of Stretch Strength
1200
1300
800
1200
1200
1200
Resistance to Acid
Medial
Fair
Excellent
Excellen
Excellent
Fair
Resistance to Oxidation
Excellent
Good
Excellent
Excellent
Poor
Fair
Resistance to Alkali
Medial
Poor
Excellent
Excellent
Excellent
Good
Resistance to Hydrolysis
Medial
Poor
Excellent
Excellent
Excellent
Fair
Application
1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant
3) Asphalt concrete mixture, cements, chemical,ceramics, building materials
4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
Size
Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
Filter Bag Top Construction
1) Side Load: raw edge top (3” longer than split collar cage length)
2) Top Load: snap band/ring ; double beaded
Bottom Construction
1) Single-ply felted disc bottom
2) 3” bottom; double-ply wearguard
3) 5” wear cuff with 2” overhang below bag disc bottomBottom Construction


There is normal size as following :

Applied industry ( Bag Filter system ) Diameter (mm ) Length (mm)
Asphalt mixing Plant 130 2500
Metal smelting furnace 160 3000
Steel Mill ( sintering machine , blast furanmce ) 160 6000
Tobacco drying system 130 3600
Aluminum / leads scrap melting furnace 160 3600

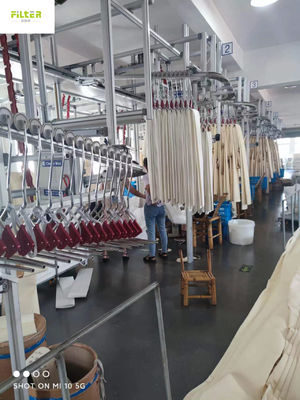

Producing Process:



Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 1



Install Diagram:

Black Fiberglass Filter Bag For Cement Plant Corrosion Resistance 2



Applications:



Dust Collector Filter Bags Nomex Aramid With SS Ring Top 3

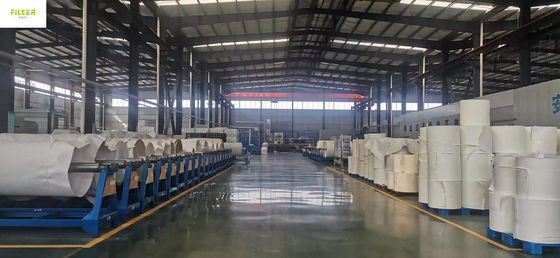

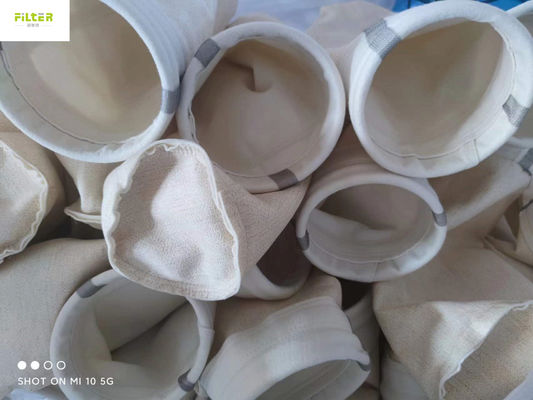

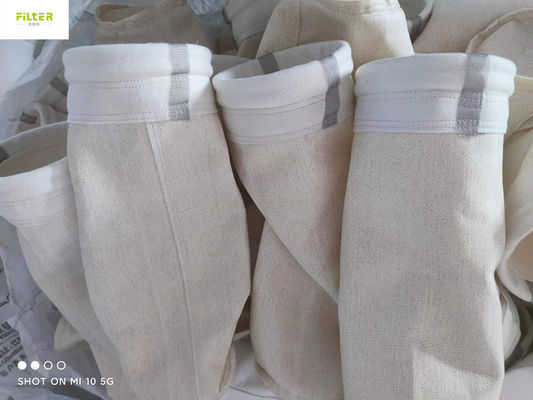

More Production:
