Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16"
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7
  • Nylon PP Polyester Water Filtration Liquid Filter Bag 7

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16"

Place of Origin china
Brand Name Filter
Model Number liquid filter bag
Product Details
Usage:
Water Filter,Liquid Filter
Type:
Mesh Filter Bag
Material Of Bag:
Nylon,PP,PE
Application:
Water,coffee,Liquid Filteration
Size:
Custiomized
Product Name:
Liquid Filter Bag
Micron Rating:
5 10 25 50 75 100 150 200 300 400 500 Micron
Sample:
Avaliable
Top:
String,SS304 RING Or Plasic Ring
Body:
Sewing Thread Or Hot-melt
Bottom:
Sewing Thread Or Hot-melt
Bag Size:
1#,2#,3#,4#,#1-#5 Filter Bag Or Customized
High Light:

PP Polyester Water Filtration Bag

,

Liquid Filter Bag 7"X16"

,

High Elongation Micron Filter Bags

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

Micron filter bags Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16":



1. Characteristic nylon mesh bag/drawstring mesh bag:

* High Elongation.
* Excellent alkaline resistance.
* It has a working temperature of up to 120 degrees ºC.
* Smooth filament, immersion resistance,no material drop off.
* Stable chemical and physical properties
2. Production Description:

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 0
We produce Polyester,Nylon,Polypropylene liquid filter bag.
We supply different micron liquid filter bag and custom size for customer.

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 1

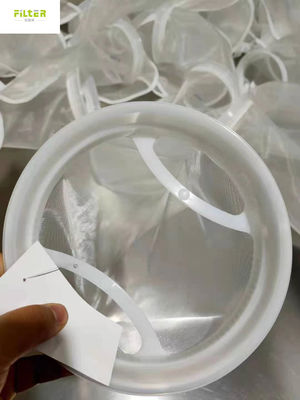

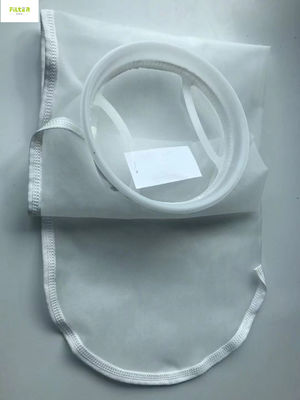

Nylon monofiament liquid filter bag with Plastic Ring and sewing thread bottom.

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 2

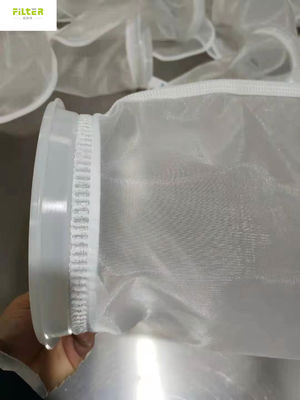

PP monofiament liquid filter bag with Plastic Ring and Hot-melt bottom.

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 3
Polyester monofiament liquid filter bag with Steel Ring and sewing thread bottom.

3. The Chemical Resistance of Liquid Filter Bag:

Product Name Liquid Filter Bags
Material Available Nylon (NMO) Polyester (PE) Polypropylene (PP)
Maximum Operating Temperature 275-300° F (135-149° C) 275-325° F (135-162° C) 200-220° F (93-104° C)

Micron Rating (um)
5,10,25, 50, 100, 150, 200, 300, 400, 500, 600, or 5-2000um 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300


Size
1 #: 7" x 16" (17.78 cm x 40.64 cm)
2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm)
4 #: 4" x 14" (10.16 cm x 35.56 cm)
5 #: 6 " x 22" (15.24 cm x 55.88 cm)
Customized size

Filter Bag Area(m²) /
Filter Bag Volume (Liter)
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
Collar Ring Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
Remarks OEM: support
Customized item: support
The Chemical Resistance Of Liquid Filter Bag
Fiber Material Polyester (PE) Nylon (NMO) Polypropylene (PP)
Abrasion Resistance Very Good Excellent Very Good
Weakly Acid Very Good General Excellent
Strongly Acid Good Poor Excellent
Weakly Alkali Good Excellent Excellent
Strongly Alkali Poor Excellent Excellent
Solvent Good Good General



4. The filter mesh widely used in all kinds of filtration and separation, such as:

1. air filter mesh in air conditioner filter.
2. liquid filter mesh for milk, juice, cheese, soya bean ect.
3. flour, solid mesh for milling.
4. We can deep produce it into filter disc and filter strainers.
5. hydrocarbon extraction.

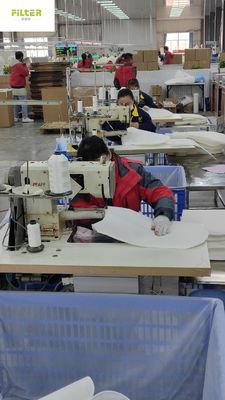

Producing Process(Air Filter Bag and Liquid Filter Bag):





Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 4



Applications:

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 5


More Production:

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 6

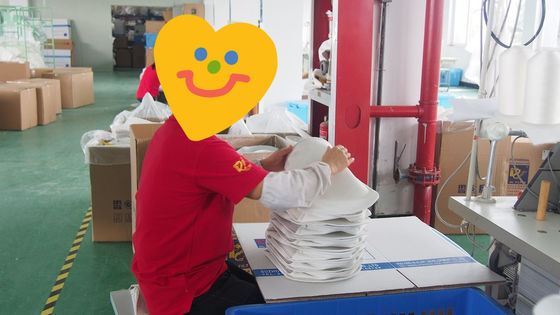

Packaging & Delivery:



Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 7

Supply Ability
10000 Pieces per day filter bag
Packaging Details
Export carton box
Lead Time
3-15 days after your deposit
Port
Ningbo/Shanghai



The common shipping:

1. For small quantity, shipped by courier.
2. For large quantity, shipped by air or by sea.
3. Tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, then we can send to your forwarder for free.

Foreign Trade Team:



Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 8






Exhibization:

Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 9
Certificate:


Nylon PP Polyester Water Filtration Liquid Filter Bag 7"X16" 10


FAQ:


Q: Are you trading company or manufacturer ?

A: We are factory with 28 years' manufacturing and sales experience.



Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the freight cost.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
