PP PE Nylon Water Liquid Filter Bag Custom Micron

Place of Origin: china
Brand Name: Filter
Model Number: liquid filter bag
Product Details
Place of Origin:
china
Brand Name:
Filter
Model Number:
liquid filter bag
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Standard Packaging:
carton
Delivery Time:
7 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union,
Supply Ability:
100000pcs per month
Specifications
Usage:
Liquid Filter/Water Liquid Filter/Oil Filter
Type:
Oil Filter Bag Liquid Filter Bag
Material:
PTFE,Nylon,PP,PE,NMO
Application:
Water,coffee,Liquid Filteration,industry Dust Collector,dust Filter
Size:
Custiomized
Product name:
Liquid Filter Bag
Micron rating:
5 10 25 50 75 100 150 200 300 400 500 Micron
Sample:
Avaliable
Top:
String,SS304 RING Or Plasic Ring
Body:
Sewing Thread Or Hot-melt
Bottom:
Sewing Thread Or Hot-melt
Packaging:
Plastic Bag+box+carton/Customized
Highlight:

PP Mesh Liquid Filter Bag

,

Custom Micron Liquid Filter Bag

,

Sewing Thread Filter Bag Nylon

Product Description

Custom Micron PP PE Nylon Water Filter Liquid Filter Mesh Bag



550gsm high temperature high density PPS filter bag for Industry Power Plant Dust Collector:



1. We Custom different kinds of Liquid Filter Bag.


Custom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter Bag

Brand FILTER
Material PE / PP / NMO / PTFE
Size 1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/
4# 102*360mm/ 5# 152*560mm
Filtration accuracy 0.5-300 microns(µm)
Bag body types Stitched, Welded
Bag top types Plastic ring top, Metal ring top, Raw top, Drawstring top

Bag bottom types
 		 "Arc" shape bottom, "V" shape bottom

Note: We can provide you with customized products!

The filter sock are available in many different sizes and shapes. The filter sock could be custom made. Normal used sizes of filter sock are.
Model Filter Bag Area (m²) Filter Bag Volume (Liter) Filter Bag Diameter (Inch/cm) Filter Bag Length (Inch/cm)

1#
 		 0.19 7.9 7/18 16/41

2#		 0.41 17.3 7/18 32/81

3#
 		 0.05 1.4 4/10.2 8.25/21

4#
 		 0.09 2.5 4/10.2 14/36

5#
 		 0.22 8.1 6/15.2 22/56

Filter material performance
Ilter material Temperature
resistance
range		 Strong
acid		 Weak
acid		 Strong
base		 Weak
base		 Oils
and fats		 Aromatic Alcohol
 Organic
solvents		 Hydrolyzed
organisms

Polyester (PE)
 		 130-150   Δ     Δ Δ Δ Δ Δ

Polypropylene
(OPP / PO)
 		 90-110 Δ Δ Δ Δ   Δ   Δ Δ

Nylon (NMO)
 		 130-150     Δ Δ Δ     Δ Δ

Polytetrafluoroethylene
 (PTFE)
 		 250-300 Δ Δ Δ Δ Δ Δ Δ Δ Δ


Precision conversion table


Micron (μm)
 		 1 3 5 10 20 25 50 70 100 125 149
Mesh 15000 5000 2500 1250 625 550 300 200 140 120 100

Micron (μm)
 		 200 250 300 350 500 590 710 840 1000 1200 1400

Mesh
 		 70 60 50 45 35 30 25 20 18 16 14


PRODUCT DETAILS

Custom Industrial Filter Socks Monofilament Nylon PE PP PTFE Water Filtration Liquid Filter Bag

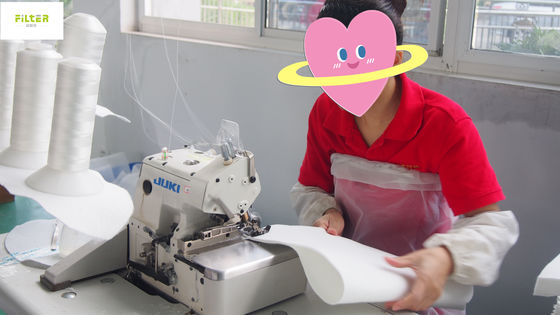

2. Producing Process(Air Filter Bag and Liquid Filter Bag):



PP PE Nylon Water Liquid Filter Bag Custom Micron

3. Applications:

PP PE Nylon Water Liquid Filter Bag Custom Micron


4. More Production:

PP PE Nylon Water Liquid Filter Bag Custom Micron





5.Packaging & Delivery:



PP PE Nylon Water Liquid Filter Bag Custom Micron

6. Exhibization:

PP PE Nylon Water Liquid Filter Bag Custom Micron
7. Certificate:


PP PE Nylon Water Liquid Filter Bag Custom Micron
