100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier
  • 100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier

Place of Origin china
Brand Name Filter
Model Number liquid filter bag
Product Details
Usage:
Liquid Filter/Water Liquid Filter/Oil Filter
Type:
Mesh Filter Bag
Material Of Bag:
Nylon,PP,PE
Application:
Water,coffee,Liquid Filteration
Size:
Custiomized
Product Name:
Liquid Filter Bag
Micron Rating:
5 10 25 50 75 100 150 200 300 400 500 Micron
Sample:
Avaliable
Top:
String,SS304 RING Or Plasic Ring
Body:
Sewing Thread Or Hot-melt
Bottom:
Sewing Thread Or Hot-melt
High Light:

100 Micron Water Filter Bag

,

Sewing Thread Mesh Filter Bag

,

Polyester Water Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

100 Micron Polyester Water Filter Bag for Liquid Industry water purifier:

1. Specifications:
Anhui Filter use high quality mesh to produce the the liquid filter bags. Mesh is a woven construction, generally used where micron ratings of 50 to 800 are required.
Two types are offered. The multifilament mesh is a low cost, disposable material offered in polyester. Monofilament mesh has higher strength, and is available in nylon. (It should be considered cleanable.)

Ring material
Stainless steel · Carbon steel · Stainless steel snap band
Polypropylene Nylon Our 11 types of replacement plastic collars can fits to most filter vessel ensuring bypass free filtration. Retainer ring versions are available in Polypropylene and Nylon to replaced to Hayward,Eaton, FSI,GAF etc. most filter housings in the market.
Offered in micron ratings 1-1500 with plastic and metal rings for versatility

Fabric Materials
Available Materials:
Nylon Monofilament
Polyester Multifilament
Polypropylene Monofilament
Polyester Monofilament (requires special order)

Monofilament:Polypropylene · Polyester · Nylon · stainless steel · Copper

Micron Ratings (um)
Monofilament: 10, 15, 20, 30, 50, 75, 80, 100, 150, 200, 250, 300, 400, 600, 800,1000
Excellent for use in the Process, Oil and Gas, Hydraulic and Lubrication Industries

Product Size
Diameter (mm)
Length (mm)
Diameter (inch)
Length (inch)
Filtration Area (mm2)
#1
180
420
7
16
0.25
#2
180
810
7
32
0.48
#3
100
230
4
9
0.1
#4
100
360
4
14
0.15
Chemical Performance
Fiber Type
Continuous Temp./(Max)
Resistance to Hydrolysis
Resistance to Acids
Resistance to Alkalis
Polypropylene(PP)
90℃/100℃
+++++
+++++
+++++
Polyester(PE)
125℃/140℃
+
+++
+



2. Production Description:

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 0

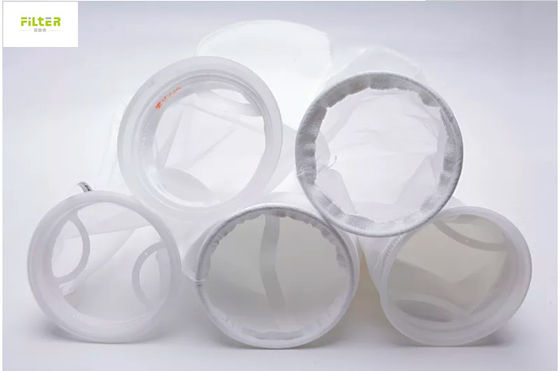

We Custom different material such as Polyester,Nylon,PP etc Liquid Filter Bag.

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 1

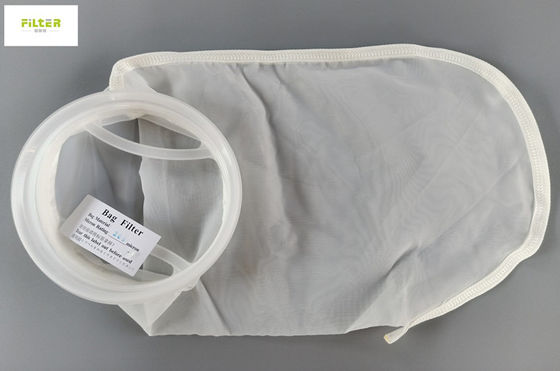

Nylon monofiament liquid filter bag with Plastic Ring and sewing thread bottom.

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 2
PP monofiament liquid filter bag with Plastic Ring and Hot-melt bottom.

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 3
Polyester monofiament liquid filter bag with Steel Ring and sewing thread bottom.

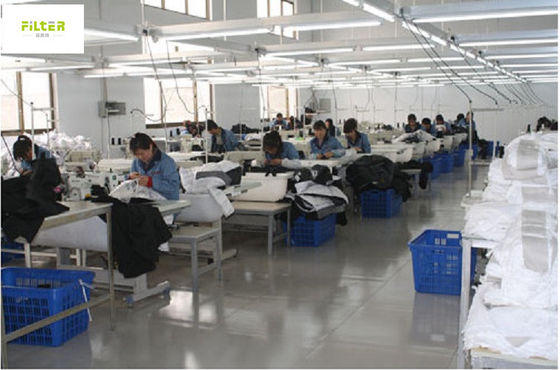

3. Producing Process(Air Filter Bag and Liquid Filter Bag):



100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 4

4. Applications:

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 5

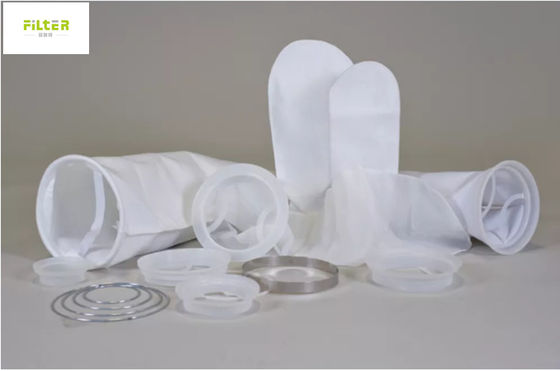

5. More Production:

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 6





Packaging & Delivery:



100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 7

Exhibization:

100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 8
Certificate:


100 Micron Polyester Water Filter Bag For Liquid Industry Water Purifier 9
