Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring
  • Hot Melt 100 Micron PP Water Filter Bag With Steel Ring

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring

Place of Origin china
Brand Name Filter
Model Number liquid filter bag
Product Details
Usage:
Liquid Filter
Type:
Mesh Filter Bag
Material Of Bag:
Nylon,PP,PE
Application:
Water,coffee,Liquid Filteration
Size:
Custiomized
Product Name:
Liquid Filter Bag
Micron Rating:
5 10 25 50 75 100 150 200 300 400 500 Micron
Sample:
Avaliable
Top:
String,SS304 RING Or Plasic Ring
Body:
Sewing Thread Or Hot-melt
Bottom:
Sewing Thread Or Hot-melt
Highlight:

Hot Melt Water Filter Bag

,

PP Water Filter Bag

,

100 Micron Water Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
carton
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000pcs per month
Product Description

Hot Melt 100 Micron PP Water Filter Bag with Steel Ring:

1. The filter mesh widely used in all kinds of filtration and separation, such as:

1. air filter mesh in air conditioner filter.
2. liquid filter mesh for milk, juice, cheese, soya bean ect.
3. flour, solid mesh for milling.
4. We can deep produce it into filter disc and filter strainers.
5. hydrocarbon extraction.


2. Production Description:

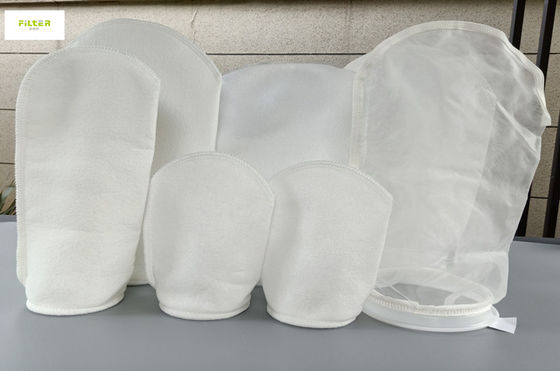

Liquid filter bags are the replaceable filter elements for bag filter systems . Our bags
are manufactured in a variety of materials offering ratings of between 1 and 1200 µm.
These materials include polypropylene, polyester, nylon, porous PTFE film, nomex and
stainless steel. And there are also plenty of media types you can choose, such as needle
felt, monofilament mesh, multifilament mesh and melt blown.
Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 0


Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 1

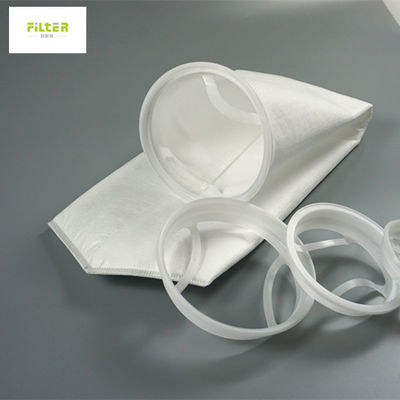

     Metal Ring Top            Plastic Ring Top       Cutting Raw Top         Drawstring Top

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 2
   Five-thread sewing hemming technology                    Hot melt welding

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 3

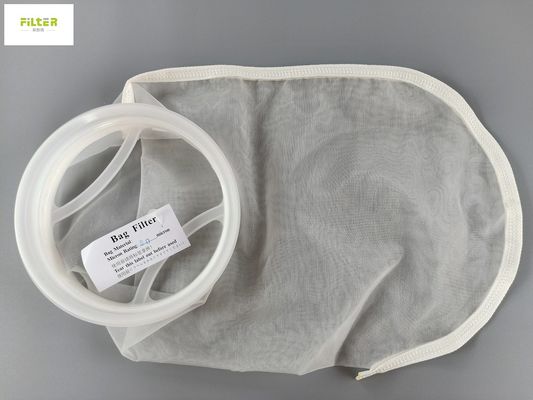

Nylon monofiament liquid filter bag with Plastic Ring and sewing thread bottom.

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 4

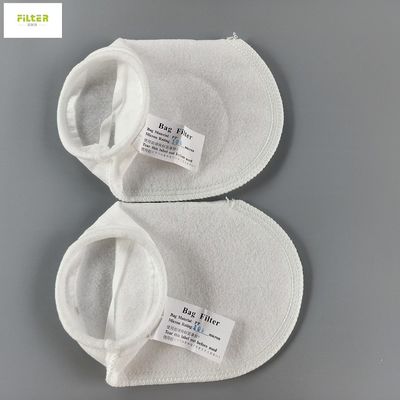

PP monofiament liquid filter bag with Plastic Ring and Hot-melt bottom.

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 5
Polyester monofiament liquid filter bag with Steel Ring and sewing thread bottom.

3. The Chemical Resistance of Liquid Filter Bag:

Product Name Liquid Filter Bags
Material Available Nylon (NMO) Polyester (PE) Polypropylene (PP)
Maximum Operating Temperature 275-300° F (135-149° C) 275-325° F (135-162° C) 200-220° F (93-104° C)

Micron Rating (um)
5,10,25, 50, 100, 150, 200, 300, 400, 500, 600, or 5-2000um 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300


Size
1 #: 7" x 16" (17.78 cm x 40.64 cm)
2 #: 7" x 32" (17.78 cm x 81.28 cm)
3 #: 4" x 8.25" (10.16 cm x 20.96 cm)
4 #: 4" x 14" (10.16 cm x 35.56 cm)
5 #: 6 " x 22" (15.24 cm x 55.88 cm)
Customized size

Filter Bag Area(m²) /
Filter Bag Volume (Liter)
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
Collar Ring Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
Remarks OEM: support
Customized item: support
The Chemical Resistance Of Liquid Filter Bag
Fiber Material Polyester (PE) Nylon (NMO) Polypropylene (PP)
Abrasion Resistance Very Good Excellent Very Good
Weakly Acid Very Good General Excellent
Strongly Acid Good Poor Excellent
Weakly Alkali Good Excellent Excellent
Strongly Alkali Poor Excellent Excellent
Solvent Good Good General





4. Characteristic nylon mesh bag/drawstring mesh bag:

* High Elongation.
* Excellent alkaline resistance.
* It has a working temperature of up to 120 degrees ºC.
* Smooth filament, immersion resistance,no material drop off.
* Stable chemical and physical properties

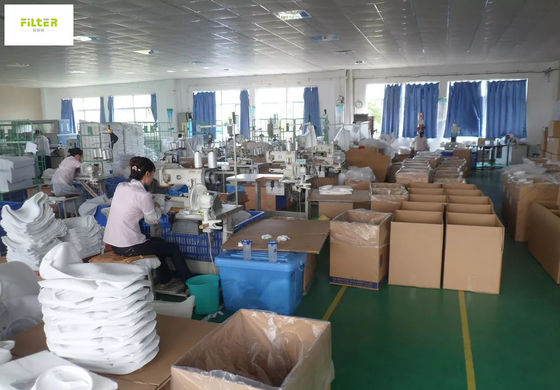

Producing Process(Air Filter Bag and Liquid Filter Bag):





Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 6



Applications:

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 7


More Production:

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 8





Packaging & Delivery:



Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 9

Supply Ability
10000 Pieces per day filter bag
Packaging Details
Export carton box
Lead Time
3-15 days after your deposit
Port
Ningbo/Shanghai



The common shipping:

1. For small quantity, shipped by courier.
2. For large quantity, shipped by air or by sea.
3. Tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, then we can send to your forwarder for free.

Foreign Trade Team:



Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 10






Exhibization:

Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 11
Certificate:


Hot Melt 100 Micron PP Water Filter Bag With Steel Ring 12


FAQ:


Q: Are you trading company or manufacturer ?

A: We are factory with 28 years' manufacturing and sales experience.



Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the freight cost.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Shipping Details:

SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
