| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | filter bag |

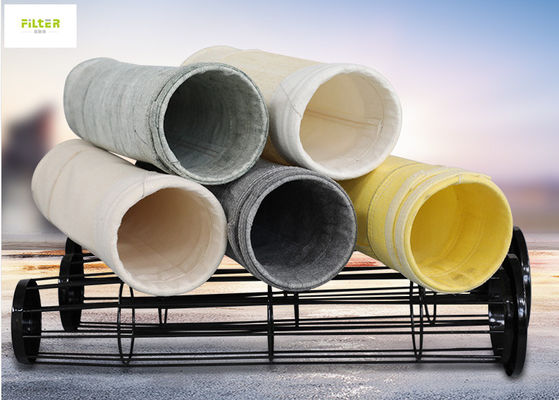

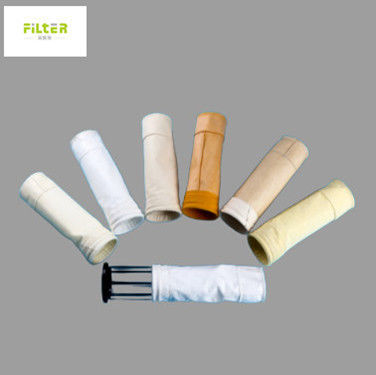

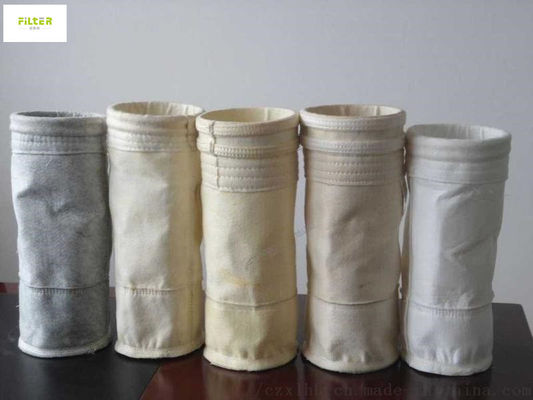

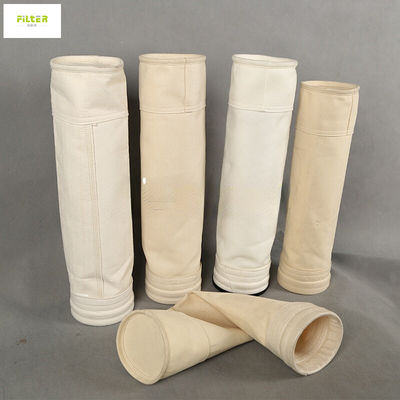

Polyester Nomex PP Acrylic Fibreglass Filter Bag:
Description:
Materials:
Needle punched Polyester,Arcylic,Aramid,PPS,P84,PTFE,Fibreglass felts for filtration are exhibiting excellent performance under wet,acid,alkali and normal-temperature and high temperature environments.
Proper Temperature:
The melting temperature of all material is as high as 90oc to 300oc.
Filter Bag Top:
Carbonsteel snapband&SS snapband.
Bottom:Reforcement 100mm or Disc.
Size:Customized.
Technical Specification:
|
Raw materials
of the filter material |
Temperature
|
Property of the filter material
& the suitable industrial conditions |
Application field and
industrial condition |
|
Polypropylene (PP)
|
900C
|
Suitable for the condition with continuous working temperature less than 900C & short time temperature less than 1000C. The oxidation resistance of the material is ordinary. Suitable PH range is 1to 14. The resistance of hydrolysis of the material is good.
|
Suitable for the dust collection of sugar production, chemical fertilizer plants, electroplating, pesticide plant, etc
|
|
polyacrylonitrile(AC)
|
1100C
|
Suitable for the condition with continuous working temperature less than 1100C & short time temperature less than 1150C. The oxidation resistance of the material is ordinary. Suitable PH range is 6 to 13.
Relative humidity<5%
|
Suitable for the dust collection of detergent production, pulverized coal plant, etc
|
|
homopolyacrylonitrile(DT)
|
1250C
|
Suitable for the condition with continuous working temperature less than 1250C & short time temperature less than 1400C. The oxidation resistance of the material is ordinary. Suitable PH range is 3 to 11
Relative humidity<30%
|
Suitable for the dust collection of detergent production, garbage incineration, asphalt, spray dryer, coal mill, power plant, etc.
|
|
Polyester (PE)
|
1500C
|
Suitable for the condition with continuous working temperature less than 1300C & short time temperature less than 1500C. The oxidation resistance of the material is good.
The acid-base resistance is ordinary. Suitable PH range is 4 to 12.
Relative humidity<4%
The expected lifetime depends on the moisture content of the flue gas when the working temperature is high.
|
Suitable for the dust collection of mine, lime cement production, raw cement, grinding machine, packaging and other process, continuous casting and sintering, ironmaking processes of Iron and steel industry , alumina conveying, electrolytic aluminum production, non-ferrous metal smelting plant, wood processing, food processing, pharmaceutical and other industries
|
|
polyphenylene sulfide
(PPS)
|
1600C
|
Suitable for the condition with continuous working temperature less than 1600C & short time temperature less than 2000C. The oxidation resistance of the material is not good. The resistance to acid-base is good. Suitable PH range is 1 to 14
Relative humidity>30%
|
Suitable for the dust collection of flue gas of coal-fired boilers, garbage incineration, metal smelting, chemical industry , etc.
|
|
polyamide (NO)
|
2000C
|
Suitable for the condition with continuous working temperature less than 2040C & short time temperature less than 2400C. The oxidation resistance of the material is ordinary.
PH range is 4 to 12.
Relative humidity<10%
The performance of the material depends on the moisture content of the flue gas when the working temperature is high.
|
Suitable for the dust collection of flue gas of asphalt-mixing, non-ferrous metal smelting, ceramics, glass, kiln head of cement industry (grate cooler), steel blast, etc.
|
|
polyimide(PI/P84)
|
2200C
|
Suitable for the condition with continuous working temperature less than 2200C & short time temperature less than 2600C. The oxidation resistance of the material is ordinary.
PH range is 3 to 13.
Relative humidity<25%
|
Suitable for the dust collection of the corrosive flue gas of Chemical plant, metal melting, garbage incineration, cement preheater and coal boiler, etc.
|
|
polyfluortetraethylene(PTFE)
|
2500C
|
Suitable for the condition with continuous working temperature less than 2500C & short time temperature less than 2800C. The material have good resistance for all the chemical corrosion
PH range is 1 to 14
Relative humidity>30%
The material has good ash removal performance.
|
Suitable for the dust collection of the highly temperature and high corrosive flue gas of Chemical industry, coal boiler, garbage incineration, non-ferrous metal smelting plant, etc.
|
|
Fiberglass (FG)
|
2600C
|
Suitable for the condition with continuous working temperature less than 2600C & short time temperature less than 2800C. The oxidation resistance of the material is ordinary. Suitable PH range is 4 to 9
Relative humidity55%
|
Suitable for the dust collection of the highly temperature flue gas of, Cement production, coal boiler, garbage incineration, steelmaking furnace, blast furnace gas production, the ferroalloy furnace, etc
|
Producing Process:
Install Diagram:
Applications:
More Production:
Production Features:
1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2. Strong intensity.
3. Excellent anti-abrasion,good finishing treatment.
4. Good raw material, competitive price.
5. High filtration efficiency .
6. Fast delivery.
7. Size can be customized.
8. Factory manufacturer could contol quality and price.
9. Strict quality inspection and contol.
10. Professional designer team to match with your operating condition.
