Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll
  • Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll
  • Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll
  • Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll
  • Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll
  • Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll

Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll

Place of Origin jiangsu
Brand Name Filter
Model Number Dust Collector filter bag
Product Details
Product Name:
Dust Collector Filter Bag
Type:
Pocket Filter, Polyester Needle Felt Filter,Nomex,Aramid
Weight:
450GSM~550GSM
Size:
Customized
Usage:
Dust Filter,Air Filter,dust Collector
Material Of Bag:
Aramid,Non-woven,Polyester,PTFE,Fiberglass
Application:
Industry Dust Collector,cement Plant,Dust Collector Bag House,asphalt Mix,Industrial Dust Removal
Applicable Industries:
Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory,Machinery Repair Shops
Product Name:
NomexFilter Bag,filter Bag,Nomex,jet Dust Filter,Polyester Anti-Static Needle Felt Filter Bag
Color:
White
Thickness:
1.8-2.0mm
Material:
Polyester Fiber,Aramid,aramid Nomex Metamax
Temperature:
120-150
Shape:
Round
Package:
Polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Name:
Polyester Filter Bag
Oem:
Welcomed
Keyword:
Aramid Filter Bag,polyester Filter Bag,Nomex Filter Bag,filter Bag
High Light:

Pleated Dust Collector Filter Bag

,

2.2mm Dust Collector Filter Bag

,

50m/Roll Pleated Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

Pleated filter bag star filter bag for dust collector improve the collection efficiency:



Description:



Pleated Filter Bag are widely used in steel, cement, chemical industry, power plant, road construction, metallurgy, grain processing, etc. It is a cost-effective filtration solution.



Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 500~550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set,with PTFE membrane,oil&water repellent treatment.
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent





Product Feature:



1) Its unique pleated design can double the available fabric filtering area in the same space as traditional cylindrical and oval filter bags.
2) The pleats are gathered at the top snap band so it can fit in the same cell plate hole as a standard bag of the same diameter.
3) Horizontal bands sewn to the fabric ensure the Pleated filter bag retains the pleats for its entire service life.
4) Our Pleated Filter Bag also has the characteristics of high strength, anti-acid, anti-alkali, wear resistance, anti-folding, easy to clear ash, water resistance, anti-oil, anti-static and so on.



Application:



1. Food and Beverage Industry.

2. Pharmaceutical Industry.

3. Non-ferrous Metallurgy.

4. Chemcial Plant.

5. Building Section and Mining Industry.

6. Cement Plant.

7. Power Plant.

8. Steel Plant.

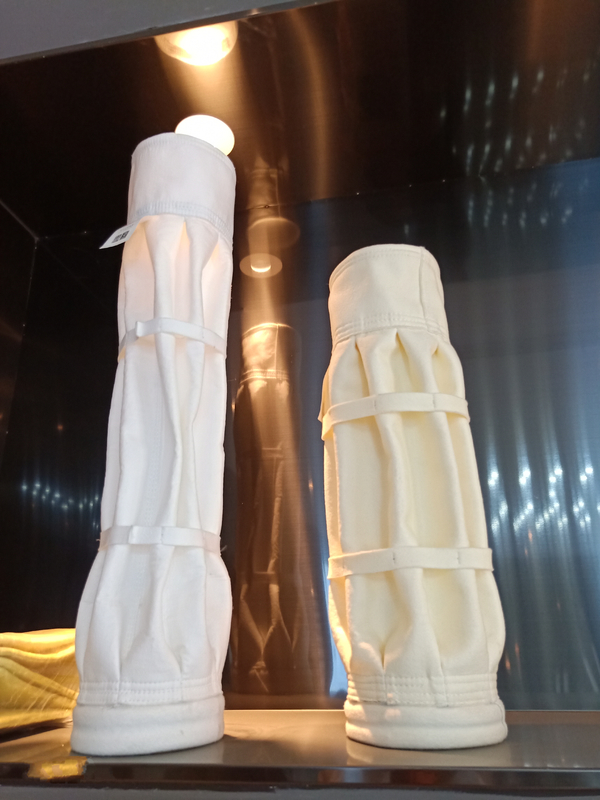

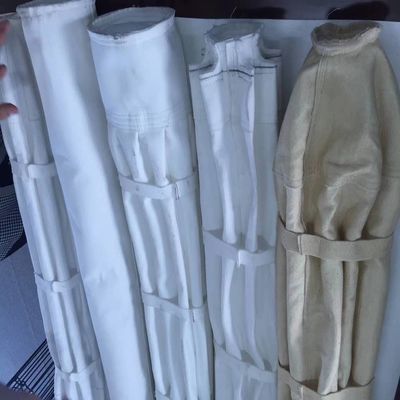

Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll 0

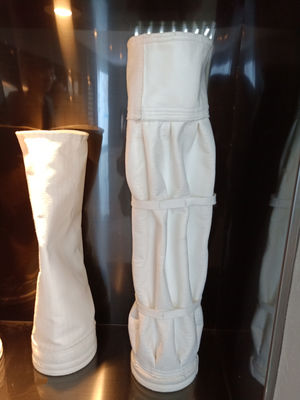

Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll 1

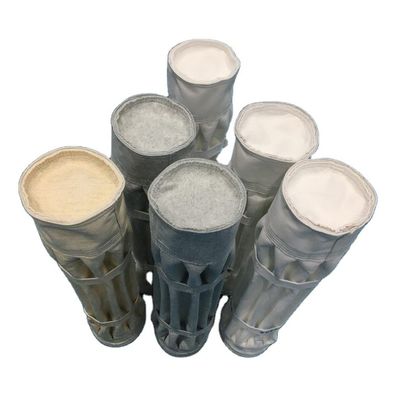

Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll 2

Advantages:



This Pleated Filter Bag can significantly increase the air volume of existing dust collectors to increase production capacity and greatly improve the collection efficiency of dust collectors, especially PM2.5 and PM10 ultrafine dust. It can also reduce energy consumption and maintenance costs, extend the service life. It can be provided in different specifications.



Packaging & Delivery:



Star Pleated Dust Collector Filter Bag 2.2mm Thickness 50m/Roll 3



FAQ:



1.Are you manufacturer or Trade Company?

We are a manufacturer specialized in fiue gas dust collecting bags, vacuum cleaner non-woven dust bags and various of filters.

2. What's the order process?

a. Inquiry--- The more detailed information you provide, the more accurate product we could provide you.

b. Quotation---Resonable quotation with clear specifications.

c. Sample confirmation---Sample could be sent before the final ordering.

d. T/T 30% in advanced, and the balance could be paid before shipment.

e. Production---Mass production.

f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.

3. What terms of payment you use?

T/T L/C OA 90 days or 120 days and so on .

we can give credit amount for you.



Competitive Advantage:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
