Place of Origin | china |
Brand Name | Filter |
Model Number | liquid filter bag |

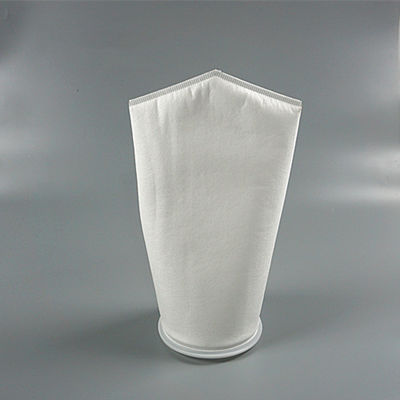

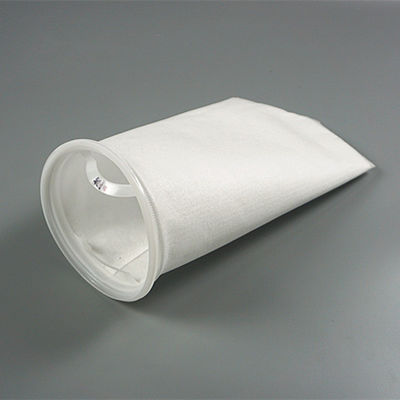

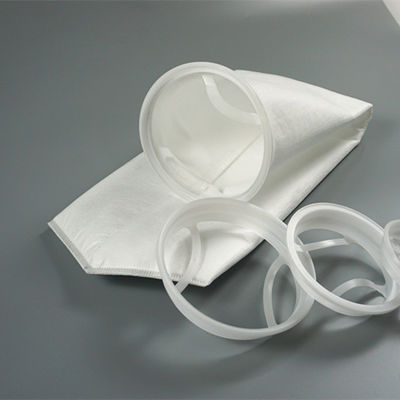

Different Microns PE Polyester Nylon Polypropylene Aquarium Water 100 Micron Filter Bag:
Brand | FILTER |
Material | PE / PP / NMO / PTFE |
Size | 1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/ 4# 102*360mm/ 5# 152*560mm |
Filtration accuracy | 0.5-300 microns(µm) |
Bag body types | Stitched, Welded |
Bag top types | Plastic ring top, Metal ring top, Raw top, Drawstring top |
Bag bottom types |
"Arc" shape bottom, "V" shape bottom |
Model | Filter Bag Area (m²) | Filter Bag Volume (Liter) | Filter Bag Diameter (Inch/cm) | Filter Bag Length (Inch/cm) |
1# |
0.19 | 7.9 | 7/18 | 16/41 |
2# |
0.41 | 17.3 | 7/18 | 32/81 |
3# |
0.05 | 1.4 | 4/10.2 | 8.25/21 |
4# |
0.09 | 2.5 | 4/10.2 | 14/36 |
5# |
0.22 | 8.1 | 6/15.2 | 22/56 |
Micron (μm) |
1 | 3 | 5 | 10 | 20 | 25 | 50 | 70 | 100 | 125 | 149 |
Mesh | 15000 | 5000 | 2500 | 1250 | 625 | 550 | 300 | 200 | 140 | 120 | 100 |
Micron (μm) |
200 | 250 | 300 | 350 | 500 | 590 | 710 | 840 | 1000 | 1200 | 1400 |
Mesh |
70 | 60 | 50 | 45 | 35 | 30 | 25 | 20 | 18 | 16 | 14 |
1. Five-thread sewing hemming technology High pressure resistance.
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.
2. Hot melt welding Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect.
Use digital co-located multi-point welding equipment to ensure that each point of welding is firm.
Without any special bleaching and dyeing treatment, it fully complies with environmental standards.
Bottom Type
Welded arc Stitched arc Welded V
PRODUCT REAL SHOT
PRODUCT PROCESS(AIR FILER BAG AND LIQUID FILTER BAG):
APPLICATIONS:
ADVANTAGES:
1) We have experience in providing OEM services to many big factories in USA, Japan, Taiwan, etc., and have directly or indirectly sold to more than 50 countries, such as Europe, Japan and USA.
2) We professionally produce various kinds of the filter bag,filter cloth,filter Cartridgeand its fittings for more than 20 years.
3) We are the manufacturer, can assure the price ,quality and shipment.
CERTIFICATE:
Contact Us at Any Time
