Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dust Collector Filter Bag | Applicable Industrie: | Food And Beverage Industry,pharmaceutical Industry,non-ferrous Metallurgy,chemcial Plant,building Section And Mining Industry Etc. |
|---|---|---|---|
| Usage: | Industry Dust Collector | Type: | Pocket Filter, Polyester Needle Felt Filter |
| Weight: | 450GSM~550GSM | Size: | Customized |
| Material Of Bag: | Aramid,Non-woven,Polyester,PTFE,Fiberglass | Product Name: | NomexFilter Bag,filter Bag,Aramid,polyester Filter Bag,fibreglass Filter Bag |
| Thickness: | 2.0mm | Material: | Polyester Fiber |
| Temperature: | 120-150 | Package: | Polybags/cartons/customized |
| Feature: | Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality | Name: | NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag,polyester Filter Bag,polyester With PTFE Membrane Filter Bag |
| Oem: | Welcomed | Keyword: | Aramid Filter Bag,nomex Filter Bag For Steel Plant,polyester Filter Bag |
| High Light: | Needle Felt Aramid Filter Bag,Mining Aramid Filter Bag,450GSM Aramid Filter Bag |
||

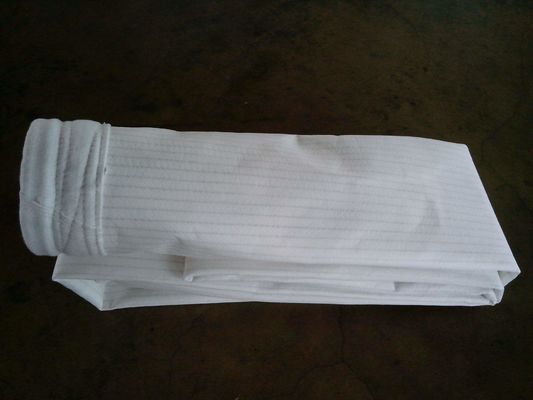

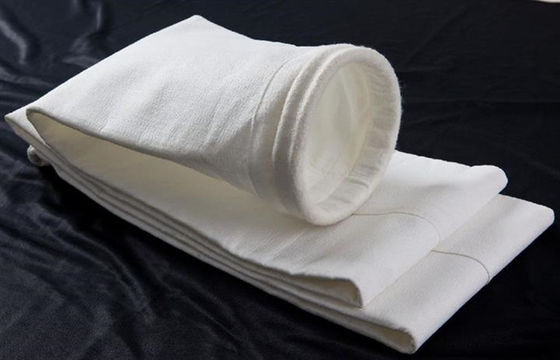

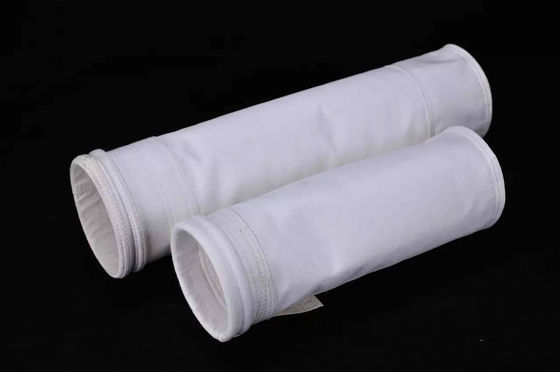

Polyester Filter Bag
Description:
The filter bag is a key part of the operation of the bag filter. Usually the cylindrical filter bag is suspended vertically in the dust collector. The fabric and design of the filter bag should be as efficient as possible for efficient filtration, easy dust removal and durability.
Material: Polyester Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Data:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1100 Weft:>1350 |
| Tensile elongation (%): | Warp:<25 Weft:<45 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Anti-acid | Excellent |
| Anti-alkali | Fair |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Fair |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc. |
Product Feature:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
