PTFE Membrane 500gsm Polyester Needle Felt Filter Bag
  • PTFE Membrane 500gsm Polyester Needle Felt Filter Bag
  • PTFE Membrane 500gsm Polyester Needle Felt Filter Bag
  • PTFE Membrane 500gsm Polyester Needle Felt Filter Bag
  • PTFE Membrane 500gsm Polyester Needle Felt Filter Bag
  • PTFE Membrane 500gsm Polyester Needle Felt Filter Bag

PTFE Membrane 500gsm Polyester Needle Felt Filter Bag

Place of Origin jiangsu
Brand Name Filter
Model Number Aramid filter bag
Product Details
Product Name:
Polyester With PTFE Membrane Filter Bag
Usage:
Industry Dust Collector
Type:
Pocket Filter, Polyester Needle Felt Filter
Weight:
450GSM~550GSM
Size:
Customized
Application:
Food And Beverage Industry,pharmaceutical Industry,non-ferrous Metallurgy,chemcial Plant,building Section And Mining Industry Etc.
Material Of Bag:
Aramid,Non-woven,Polyester,PTFE,Fiberglass
Product Name:
NomexFilter Bag,filter Bag,Nomex,jet Dust Filter,Polyester Anti-Static Needle Felt Filter Bag
Thickness:
2.0mm
Material:
Polyester Fiber
Temperature:
120-150
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
High Light:

Polyester Needle Felt Filter Bag

,

500gsm Needle Felt Filter Bag

,

PTFE Membrane Aramid Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

Polyester with PTFE membrane Filter Bag



Description:



Material: Polyester with PTFE membrane Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Specification:



Fibre Polyester
Scrim Polyester
Weight(G/M2) 450~550
Thickness (mm) 2.0
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set,Overlaying PTFE membrane.
Air permeability (m3/m2/min): 1.68
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 120 Instant: 150
Anti-acid Excellent
Anti-alkali Fair
Anti-abrasion Excellent
Hydrolytic stability Fair
Application Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc.





Product Feature:



1. High Voidage.

2. Good air permeability.

3. High dust collecting efficiency.

4. High tensile strength.

5. Strong elongation.

6. Long service life.

7. Moderate temperature rating.



Application:



1. Food and Beverage Industry.

2. Pharmaceutical Industry.

3. Non-ferrous Metallurgy.

4. Chemcial Plant.

5. Building Section and Mining Industry.

6. Cement Plant.

7. Power Plant.

8. Steel Plant.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.

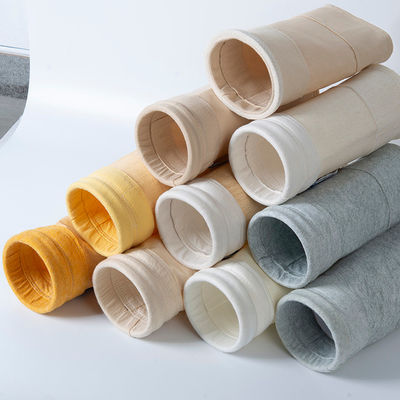

PTFE Membrane 500gsm Polyester Needle Felt Filter Bag 0

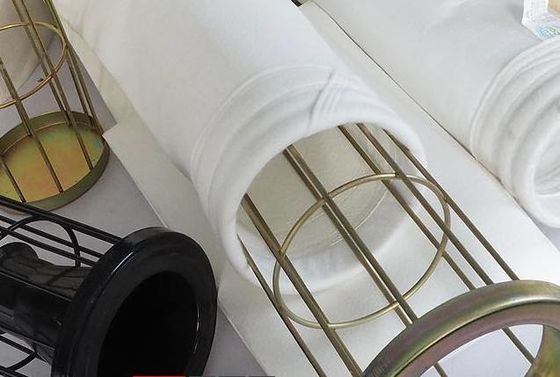

PTFE Membrane 500gsm Polyester Needle Felt Filter Bag 1







Packaging & Delivery:

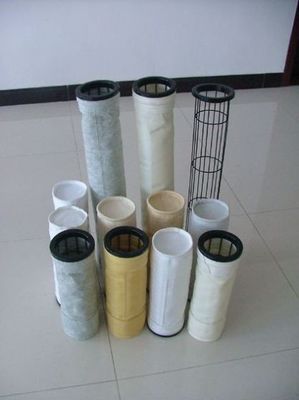

PTFE Membrane 500gsm Polyester Needle Felt Filter Bag 2



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.





Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
