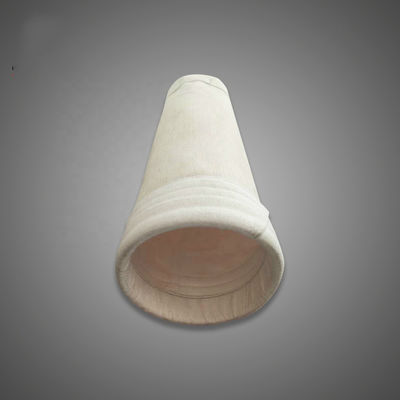

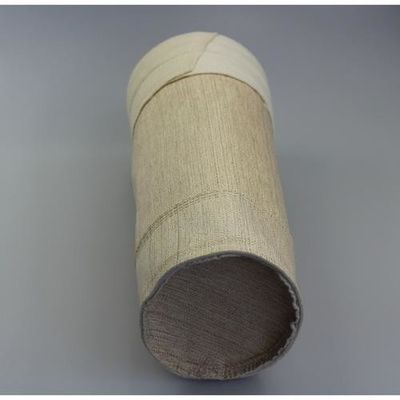

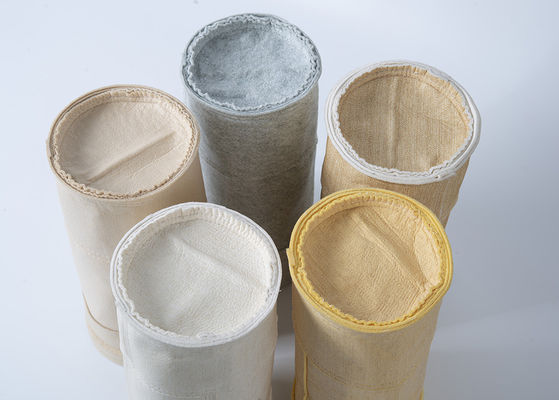

500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry
  • 500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry
  • 500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry
  • 500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry
  • 500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry
  • 500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry

500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry

Place of Origin jiangsu
Brand Name Filter
Model Number Aramid filter bag
Product Details
Product Name:
Nomex(Aramid) Filter Bag
Applicable Industrie:
Cement Plant,Power Plant,Steel Plant,Mining Plant Etc.
Usage:
Industry Dust Collector
Type:
Pocket Filter, Aramid Filter
Weight:
500GSM~550GSM
Size:
Customized
Material Of Bag:
Aramid,Non-woven
Surface Finishing:
Singed,Calandered,Heat-set,with PTFE Memebrane
Top:
SS304 Sanpband
Bottom:
Reforcement 100mm Or According To Your Requirements
Normal Temperature:
204deg.c
High Temperature:
240deg.c
Shape:
Round,Customers' Request
Package:
OEM Package,polybags/cartons/customized
Feature:
Dust Collection,High Filtration Accuracy,Eco-Friendly,Heat Resistant,High Quality
Name:
NOMEX Dust Filter Bag,Non-woven Pocket Air Filter Bag
Oem:
Welcomed
Keyword:
Aramid Filter Bag,nomex Filter Bag For Steel Plant
Thickness:
2.0mm
Highlight:

Aramid Nomex Filter Bag

,

Asphalt Nomex Filter Bag

,

50m/Roll Nomex Filter Bag

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

550gsm Aramid Nomex filter bag for asphalt plant cement industry



Description:



Material:Nomex(Aramid)  Needle Felt
Weight: 500GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Technical Data:



Fibre Aramid
Scrim Aramid
Weight(G/M2) 500~550
Thickness (mm) 2.2
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set,with PTFE membrane,oil&water repellent treatment.
Air permeability (L/m2/s): 120~200
Tensile strength (N/5× 20cm) Warp:>1000 Weft:>1200
Tensile elongation (%): Warp:<50 Weft:<55
Temperature (ºC): Continue: 204 Instant: 240
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent



500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry 0

500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry 1

500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry 2

500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry 3



Production Feature:



1.High efficient filtration level.

2.Depth type filtration.

3.Wide range of chemically compatible media.

4.High temperature resistance.

5.High flow efficiency.

6.High air to cloth ratio.

7.Various coatings are available.



Application:



1. Asphalt Industry.

2.Food and Beverage Industry.

3. Pharmaceutical Industry.

4. Non-ferrous Metallurgy.

5. Chemcial Plant.

6. Building Section and Mining Industry.

7. Cement Plant.

8. Power Plant.

9. Steel Plant.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



FAQ:



1.Are you manufacturer or Trade Company?

We are a manufacturer specialized in fiue gas dust collecting bags, vacuum cleaner non-woven dust bags and various of filters.

2. What's the order process?

a. Inquiry--- The more detailed information you provide, the more accurate product we could provide you.

b. Quotation---Resonable quotation with clear specifications.

c. Sample confirmation---Sample could be sent before the final ordering.

d. T/T 30% in advanced, and the balance could be paid before shipment.

e. Production---Mass production.

f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.

3. What terms of payment you use?

T/T L/C OA 90 days or 120 days and so on .

we can give credit amount for you.



Packaging & Delivery:



500gsm~550gsm Aramid Nomex filter bag for asphalt plant cement industry 4



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.
