Liquid Filter Bag
>
|
| Place of Origin | china |
| Brand Name | filter |
| Model Number | liuqid filter bag |

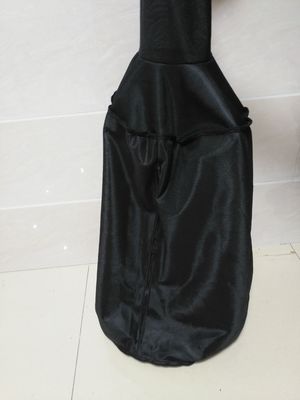

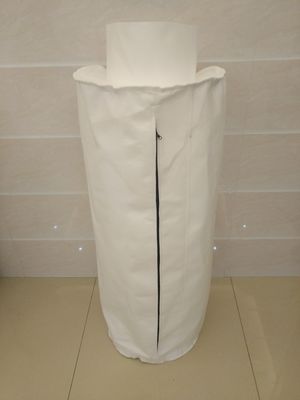

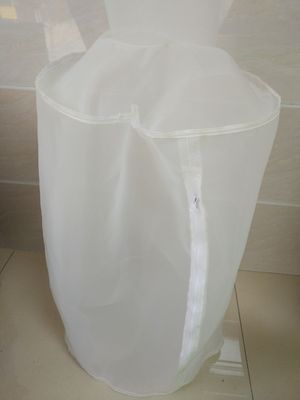

Nylon Mesh Filter Bag for Liquid Filtration
Specifications:
1) Open top for easy cleaning
2) Hanging loop
3) Use for making different beverage, such as juice.
4) Shape,Size can be customized.
Liquid Filter Bag Technical Data:
| Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
| Sewing Thread Hot-melt |
PE,PO/PP,NMO |
1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 |
Zinc-plated SS304 Plastic Ring |
Round or Square |
| Item | Specifications(mm) | Material | Micron(µm) | Technology | Ring Material |
| 01 | 180*430 | Nylon | 1-1200um | sewn | SDS/PP |
| 02 | 180*810 | Nylon | 1-1200um | Sewn | SDS/PP |
| 03 | 105*230 | Nylon | 1-1200um | Sewn | SDS/PP |
| 04 | 105*380 | Nylon | 1-1200um | Sewn | SDS/PP |
| 05 | 155*560 | Nylon | 1-1200um | Sewn | SDS/pp |
Filter Bag Material Performance Table
| Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Glycol Ether | Organic Solution | Water Microorganism | Aromatic |
| PE | 150~170 | √ | √ | √ | √ | √ | √ | |||
| PO/PP | 90~110 | √ | √ | √ | √ | √ | √ | √ | √ | |
| NMO | 150~170 | √ | √ | √ | √ | √ | ||||
| PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
Produce Workshop:
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
