Liquid Filter Bag
>
|
| Place of Origin | Jiangsu |
| Brand Name | Filter |
| Model Number | Liquid filter bag |

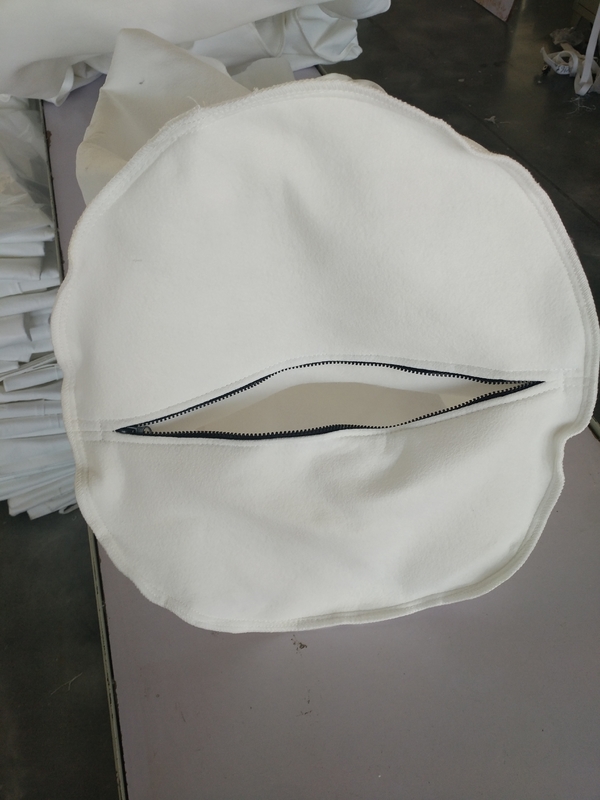

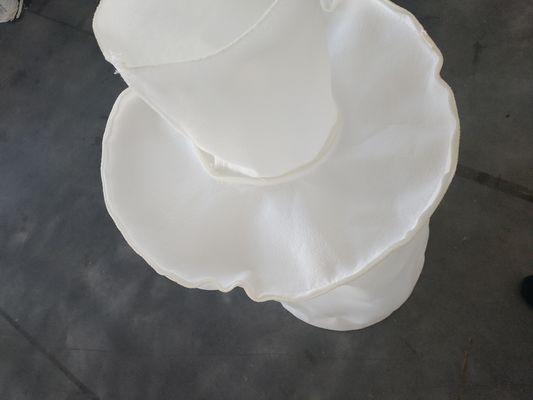

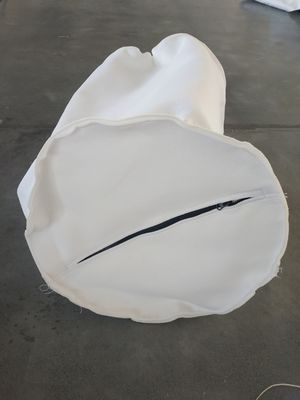

Polyester Liquid Filter Bag
Description:
Item name: Polyester liquid filter bag
Material: Polyester needle felt
Micron rating:10mesh~420mesh
Construction: Hot-melt or sewing thread.
Collar type: Steel ring or plastic ring
Application:
Chemical industry, adhesive industry, paints industry, petrochemical industry, resin industry, cosmetic industry, etc.We can produce filter bags to meet your specific requirements.
Liquid Filter Bag Technical Data
| Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
| Sewing Thread Hot-melt | PE,PO/PP,NMO | 1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 | Zinc-plated SS304 Plastic Ring | Round or Square |
Filter Bag Specification
| Type | Flow rate(m3/h) | Filtration Area(m2) | Volume (L) | Size (Diameter X Length) | |
| #1 | 20 | 0.25 | 8 | 7" x 17" (180mm x410mm) | |
| #2 | 40 | 0.50 | 7 | 7" x 32" (180mm x 810mm) | |
| #3 | 6 | 0.09 | 1.3 | 4" x 9" (108mm x 230mm) | |
| #4 | 12 | 0.16 | 2.5 | 4" x 15" (108mm x 380mm) | |
| *Size could be on your request. | |||||
Filter Bag Material Performance Table
| Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Glycol Ether | Organic Solution | Water Microorganism | Aromatic |
| PE | 150~170 | √ | √ | √ | √ | √ | √ | |||
| PO/PP | 90~110 | √ | √ | √ | √ | √ | √ | √ | √ | |
| NMO | 150~170 | √ | √ | √ | √ | √ | ||||
| PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |

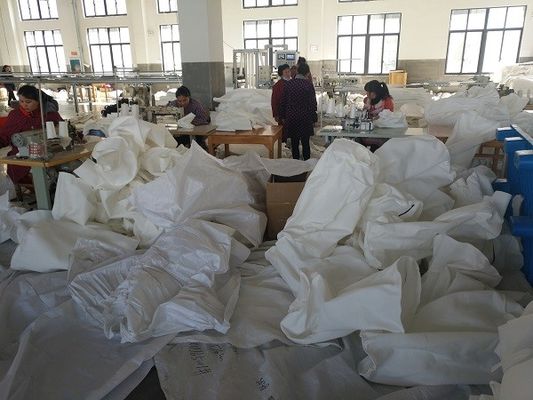

Produce Workshop
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days) | ||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
