Liquid Filter Bag
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | liquid filter bag |

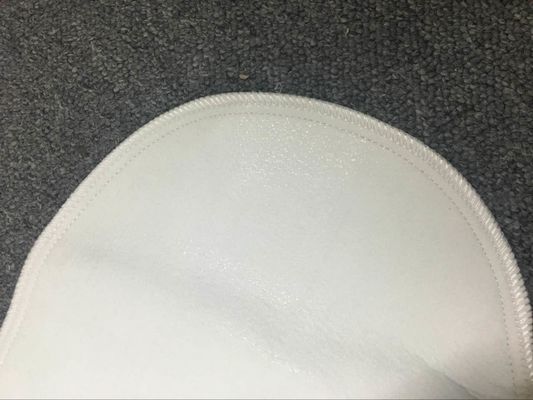

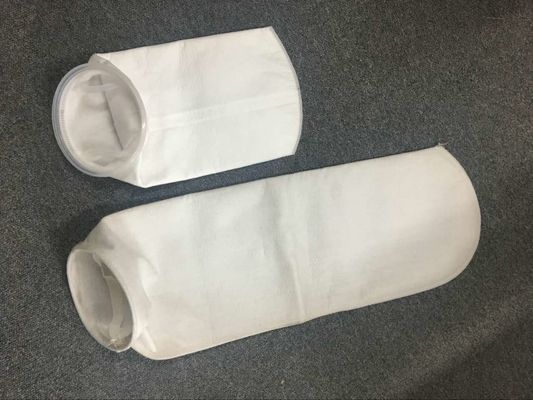

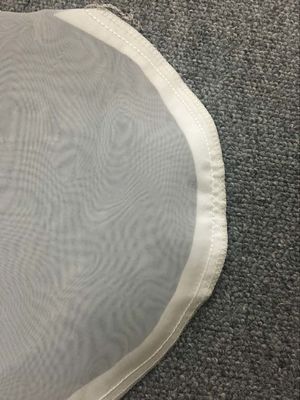

PP Liquid Filter Bag
Description:
Item name: Polypropylene filter bag
Material: Polypropylene non-woven
Micron rating:0.5μm ~250μm
Construction: Hot-melt or sewing thread.
Collar type: Steel ring or plastic ring
Served industries:
Chemical industry, adhesive industry, paints industry, petrochemical industry, resin industry, cosmetic industry, etc.We can produce filter bags to meet your specific requirements.
Application:
Chemical industry, adhesive industry, paints industry, petrochemical industry, resin industry, cosmetic industry, etc.We can produce filter bags to meet your specific requirements.
Liquid Filter Bag Technical Data:
| Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
| Sewing Thread Hot-melt |
PE,PO/PP,NMO |
1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 |
Zinc-plated SS304 Plastic Ring |
Round or Square |
Filter Bag Specification:
| Type | Flow rate(m3/h) | Filtration Area(m2) |
Volume (L) |
Size (Diameter X Length) | |
| #1 | 20 | 0.25 | 8 | 7" x 17" (180mm x410mm) | |
| #2 | 40 | 0.50 | 7 | 7" x 32" (180mm x 810mm) | |
| #3 | 6 | 0.09 | 1.3 | 4" x 9" (108mm x 230mm) | |
| #4 | 12 | 0.16 | 2.5 | 4" x 15" (108mm x 380mm) | |
| *Size could be on your request. | |||||
Filter Bag Material Performance Table:
| Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Organic Solution | Water Microorganism | Aromatic |
| PE | 150~170 | √ | √ | √ | √ | √ | |||
| PO/PP | 90~110 | √ | √ | √ | √ | √ | √ | √ | √ |
| NMO | 150~170 | √ | √ | √ | √ | √ | |||
| PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table:
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
Produce Workshop:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
