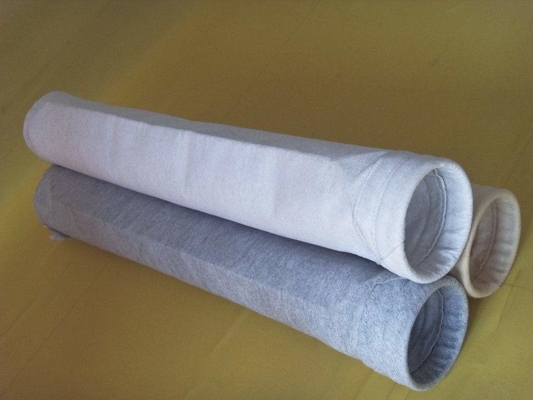

550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant
  • 550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant
  • 550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant
  • 550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant
  • 550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant

550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant

Place of Origin jiangsu
Brand Name Filter
Model Number Felt filter bags
Product Details
Product Name:
Polyester Filter Bag
Applicable Industrie:
Used In Metallurgy, Chemical, Building Material, Electric Power Station, Mechanism Industry, Petroleum, Medicine, Printing And Dyeing, Food And Beverage, And Other Industries To Filter Gas And Recycle Material.
Usage:
Dust Filter
Type:
Pocket Filter,Polyester Filter Cloth
Weight:
500GSM~550GSM
Size:
Customized
High Light:

needle felt filter bags

,

dust filtration bags

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Carton or Woven Bag
Delivery Time
3~15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
Supply 10000pcs filter bags per month
Product Description

550gsm Polyester with PTFE membrane Filter Bag for Power Plant



Description:



Material: Polyester with PTFE membrane Needle Felt
Weight: 500GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.



Product Definition:



Polyester Needle felt is ideal filter material for dust filtration, according to different functions, it includes water & oil proof needle felt, antistatic needle felt, easy cleaning needle felt, PTFE membrane needle felt.



Specification:



Fibre Polyester
Scrim Polyester
Weight(G/M2) 450~550
Thickness (mm) 2.0
Width (mm) ≤ 2.2
Length 50m/roll
Finish treatment Singeing, Calendering, Heat-set,Overlaying PTFE membrane.
Air permeability (m3/m2/min): 1.68
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation (%): Warp:<35 Weft:<50
Temperature (ºC): Continue: 120 Instant: 150
Anti-acid Excellent
Anti-alkali Fair
Anti-abrasion Excellent
Hydrolytic stability Fair
Application Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc.



Product Features:


** weight: 500g/m²
** thickness: 1.8mm
** working temperature: 130ºC
** good chemical stability
** high filtration efficiency
** good filtration rating
** three-dimensional filter layer, porosity
** high strength



Application:



1. Asphalt mixing plant.

2. Biomass power stations.

3. Chemical and pharmaceutical industry.

4. High temperature dedusting.

5. Coal-fired power stations.

6. Food industry.

7.Non-ferrous metal and steel production.

8.Cement,gypsum and lime industry.

9.Thermal waste treatment.

10.Mining Plant.

11.Steel Plant.



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.



Packaging & Delivery:

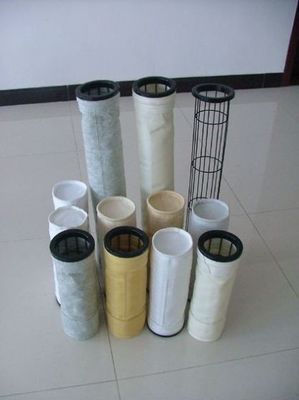

550gsm Felt Filter Bags PTFE Membrane Easy Cleaning For Power Plant 0



Competitive Advantages:



1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.

5. We offer high quality products at competitive price in quick delivery.



Shipping Details:



SHIPPING

(Normally arrive port time in working days)

Destination Express/Courier SHIP BY SEA SHIP BY AIR SHIP BY EMS
DHL/FEDEX/UPS/TNT
North America 3~7 days 15~24 days 5~7 days 10~12 days
South America 3~7 days 15~25 days 5~7 days 10~12 days
European Countries 3~7 days 20~30 days 5~7 days 10~12 days
Africa Countries 3~7 days 40~50 days 5~7 days 10~12 days
The Middle East 3~7 days 15~25 days 5~7 days 10~12 days
Australia 3~7 days 10~15 days 5~7 days 10~12 days
