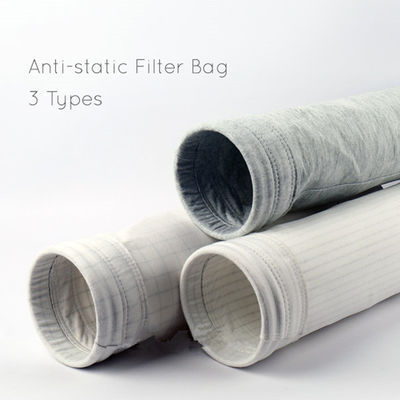

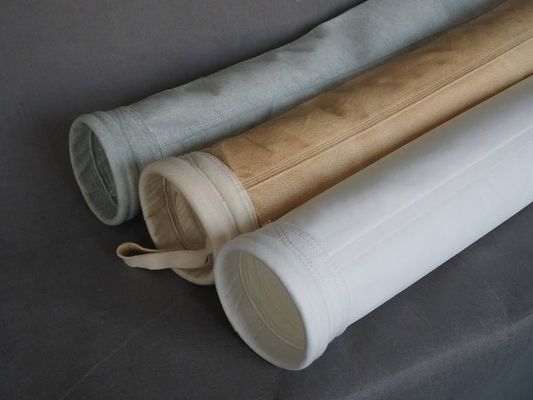

550gsm Polyester anti-static Filter Bag for Timber Mill
Description:
Material: Polyester anti-static repellent Needle Felt
Weight: 450GSM~650GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138,Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Filter Bag Function:
When the dust gas through the filter bag. The dust will be block on the filter bag surface. The clean gas will pass away. So we can say that,The filter bag is the core of the dust filter. Or, you can consider it as the lung in our body.
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, mixing lead static fibre or stripe lead static fibre Treatment. |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1100 |
| Tensile elongation (%): | Warp:<35 Weft:<55 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Surface Resistance(Ω.cm) | 103~108 |
| Anti-acid | Middle |
| Anti-alkali | Middle |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Middle |
| Application | Mainly |
Features:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
11.Steel Plant
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
