Felt Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Felt filter bags |

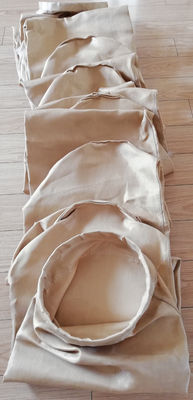

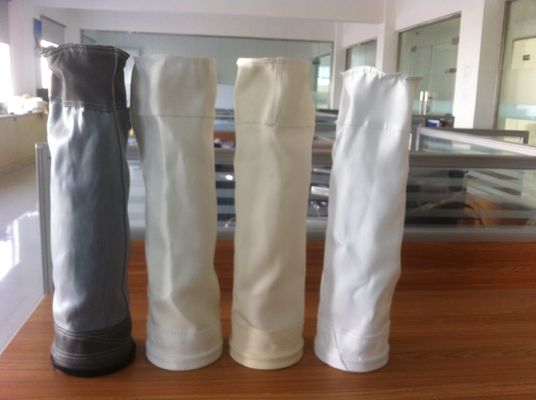

Fibreglass oil&water repellent Filter Bag
Description:
Material: Medium Alkali Fibreglass filter cloth
Weight: 630GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~120000mm. We make is as your requirements.
Specification:
| Fibre | Medium Alkali Fibreglass |
| Scrim | Medium Alkali Fibreglass |
| Weight(G/M2) | 630 |
| Thickness (mm) | 0.6 |
| Organization Structure | Plain Weave |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Silicone Oil Treatment and Oil&Water repellent Treatment. |
| Air permeability (dm3/m2/s): | 220~310 |
| Tensile strength (N/5× 20cm) | Warp:>1720 Weft:>1850 |
| Tensile elongation (%): | Warp:<5 Weft:<5 |
| Temperature (ºC): | Continue: 260 Instant: 280 |
| Application | Mainly used in Steel Plant,Cement Plant,Combustion,Coal burning boiler,Waster incineration,Carbon black producing. |
Features:
Fibreglass needled felt filter bag is a kind of reasonable structure.It has excellent performance of high temperature resistant filter materials.Glass fiber fabric has the advantage of high temperature resistant, corrosion resistance, dimension stability.It is a kind of high speed, efficient high temperature filtration material.Fibreglass needle felt filter bag is suitable for bag dust collector.
Application:
1. Steel Plant.
2. Cement Plant.
3. Combustion.
4. Coal Burning Boiler.
5. Waster Incineration.
6. Carbon Black Producing.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs,antiskid rop or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch.Usually it have 7 supporting rings.
Packaging & Delivery:
Our Services:
1. Your inquiry will be replied within 24hours.
2. Specialized team makes us strong support to solve your problem from purchases to application.
3. Competitive prices based on same quality as we are factory supplier.
4. Guarantee samples quality same as the bulk production.
5. Positive attitude to custom design products.
