Payment & Shipping Terms:
|Product Name:||Felt Filter Bag||Applicable Industrie:||Cement Plant,power Plant,steel Plant,Asphalt Plant,Mining Plant Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter, Aramid Dust Filter Bag|
needle felt filter bags,
dust filtration bags

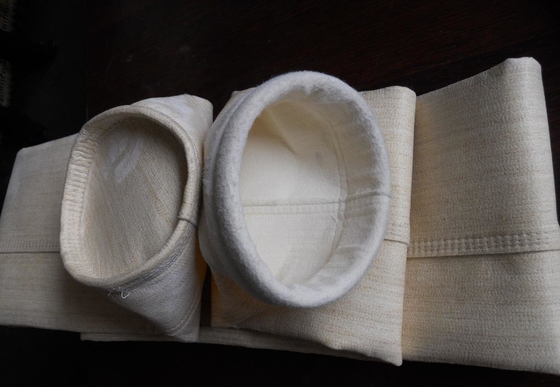

Nomex with PTFE membrane Filter Bag for Dust Collector
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing, Calendering, with PTFE membrane.|
|Air permeability (m3/m2/min):||1.86|
|Tensile strength (N/5× 20cm)||Warp:>900 Weft:>1200|
|Tensile elongation (%):||Warp:<35 Weft:<50|
|Temperature (ºC):||Continue: 204 Instant: 240|
1.The filter cloth is based on the thickness of the whole filter layer and belongs to deep filtration.
2. The depth of the whole filter layer is formed from the fiber into a three-dimensional porous structure, from the inside and outside to the outside.Dense, forming gradient filtering.
3. High pollution capacity, long filtration life, low pressure difference.
4.Repeated cleaning, economic benefits.
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations.
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals.
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers.
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics.
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster.
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing..
Normal temperature operation filter bag:
- Polypropylene needle felt filter bag
- Polyester needle felt filter bag
- Water proof polyester filter bag
- Anti-static conductive polyester filter bag
- Acrylic needle felt filter bagdus
High temperature filter bag:
- Aramid needle felt filter bag
- Nomex needle felt filter bag
- PPS (Polyphenylene Sulphide) filter bag
- P84 (Polyimide) filter bag
- PTFE needle felt filter bag
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
1. Your inquiry will be replied within 24hours.
2. Specialized team makes us strong support to solve your problem from purchases to application.
3. Competitive prices based on same quality as we are factory supplier.
4. Guarantee samples quality same as the bulk production.
5. Positive attitude to custom design products.
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
Contact Person: Nancy
