Payment & Shipping Terms:
|Product Name:||PTFE（PTFE） Filter Bag||Applicable Industrie:||Coal-fired Boilers, Waste Incineration, Flue Dust In Low Oxidation , Etc.|
|Usage:||Dust Filter||Type:||Pocket Filter, PTFE（PTFE） Filter Bag|
non woven filter bags,
custom dust bags

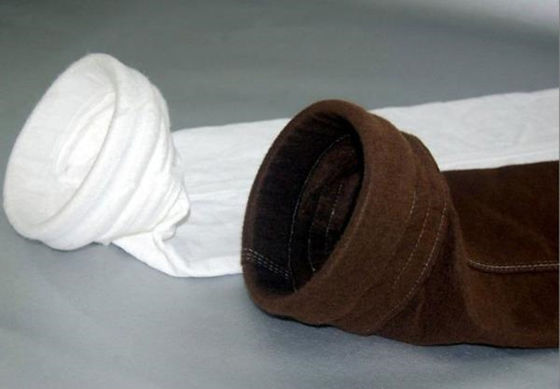

PTFE(Teflon) Filter Bag
Material:PTFE filter cloth
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
|Width (mm)||≤ 2.2|
|Finish treatment||Singeing,Calendering and PTFE dipping treatment.|
|Air permeability (m3/m2/min):||5.47|
|Tensile strength (N/5× 20cm)||Warp:>908 Weft:>1026|
|Tensile elongation (%):||Warp:<35 Weft:<50|
|Temperature (ºC):||Continue: 250 Instant: 280|
|Application||Mainly used in Combustion,Coal burning boiler,Waster incineration,Carbon black producing.|
It was widely used in Coal-fired boilers, Waste incineration, Flue dust in low oxidation , etc.
Technical Characteristics of Needle Punched Filter Felt:
a. Singeing and calendaring treatment
not only improve the cleaning performance accuracy and low ddropout performance of the filter material.
b. Anti-static treatment
Anti-static filter material which is the fiber or fiber nixed with conductive fibers ( including the binary conductive fiber, carbon fiber or stainless steel conductive fiber), so that the filter material has conductive properties.
c. Water and oil proof Treament
can prevent and mitigate paste bags of phenomenon.
d. Easily dedusting treatment
it has good cleaning performance, air permeability, and can work long hours in a high filtered wind speed.
e. PTFE with the membrane treatment
has high filtering accuracy, smooth surface, no adhesion of dust, easily dedusting and the dust does not penetrate into the filter inside to achieve the surface.

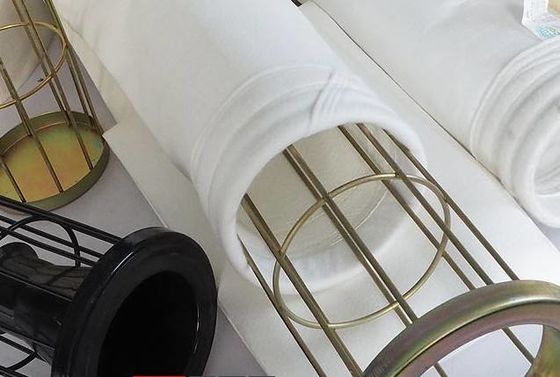

Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
(Normally arrive port time in working days)
|Destination||Express/Courier||SHIP BY SEA||SHIP BY AIR||SHIP BY EMS|
|North America||3~7 days||15~24 days||5~7 days||10~12 days|
|South America||3~7 days||15~25 days||5~7 days||10~12 days|
|European Countries||3~7 days||20~30 days||5~7 days||10~12 days|
|Africa Countries||3~7 days||40~50 days||5~7 days||10~12 days|
|The Middle East||3~7 days||15~25 days||5~7 days||10~12 days|
|Australia||3~7 days||10~15 days||5~7 days||10~12 days|
