Baghouse Filter Bags
>
|
|
| Place of Origin | jiangsu |
| Brand Name | Filter |
| Model Number | Baghouse filter bags |

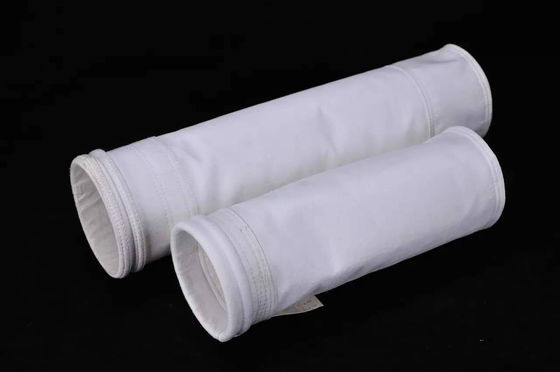

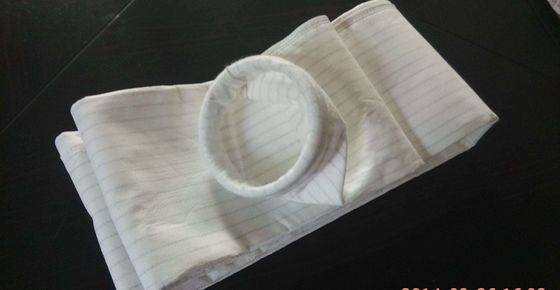

Polyester Filter Bag
Description:
The diameter of the filter bag should around 115 mm diameter to 200mm diameter. The filter bag length should 2000 - 9000mm, the specifications of the commonly used filter bag is 125 - 170 mm diameter, 2000 ~ 6000mm length.The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us with detailed information. After then, we should begin to processing. We will make the filter fabric first.
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1100 Weft:>1350 |
| Tensile elongation (%): | Warp:<25 Weft:<45 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Anti-acid | Excellent |
| Anti-alkali | Fair |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Fair |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry etc. |
Features:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7.Non-ferrous metal and steel production.
8.Cement,gypsum and lime industry.
9.Thermal waste treatment.
10.Mining Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Packaging & Delivery:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
|
SHIPPING (Normally arrive port time in working days) |
||||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT | ||||
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
